| PERFORMANCE | |
|---|---|
| Display Size | 39.7" |
| View Area | 929.3x392 mm |
| Panel | In-Plane Switching |
| Backlight | WLED |
| Aspect Ratio | 21:9 |
| Resolution | 5120x2160 |
| Pixel Pitch | 0.1815x0.1815 mm |
| Dot / Pixel Per Inch | 140 dpi |
| View Angle (H / V) | 178° / 178° |
| Response Time | 4ms GtG (Extreme mode) / 6ms GtG (Typical mode) |
| Color Support | 1.07 Billion |
| Refresh Rate | 24Hz - 120Hz |
| Brightness | 400 cd/m² |
| Contrast Ratio | 2000:1 |
| Color Gamut | 99% sRGB, 98% DCI-P3, 99% BT.709 |
| Screen Surface Treatment | Anti-glare |
| Curvature | 2500R |
| Camera | Modular Camera Support |
| Microphone | None |
| Speakers | 5Wx2, Optional Soundbar Support |
| Power Consumption (Typical / Maximum) | 41W / 300W |
| Power Adapter | Integrated |
| DESIGN | |

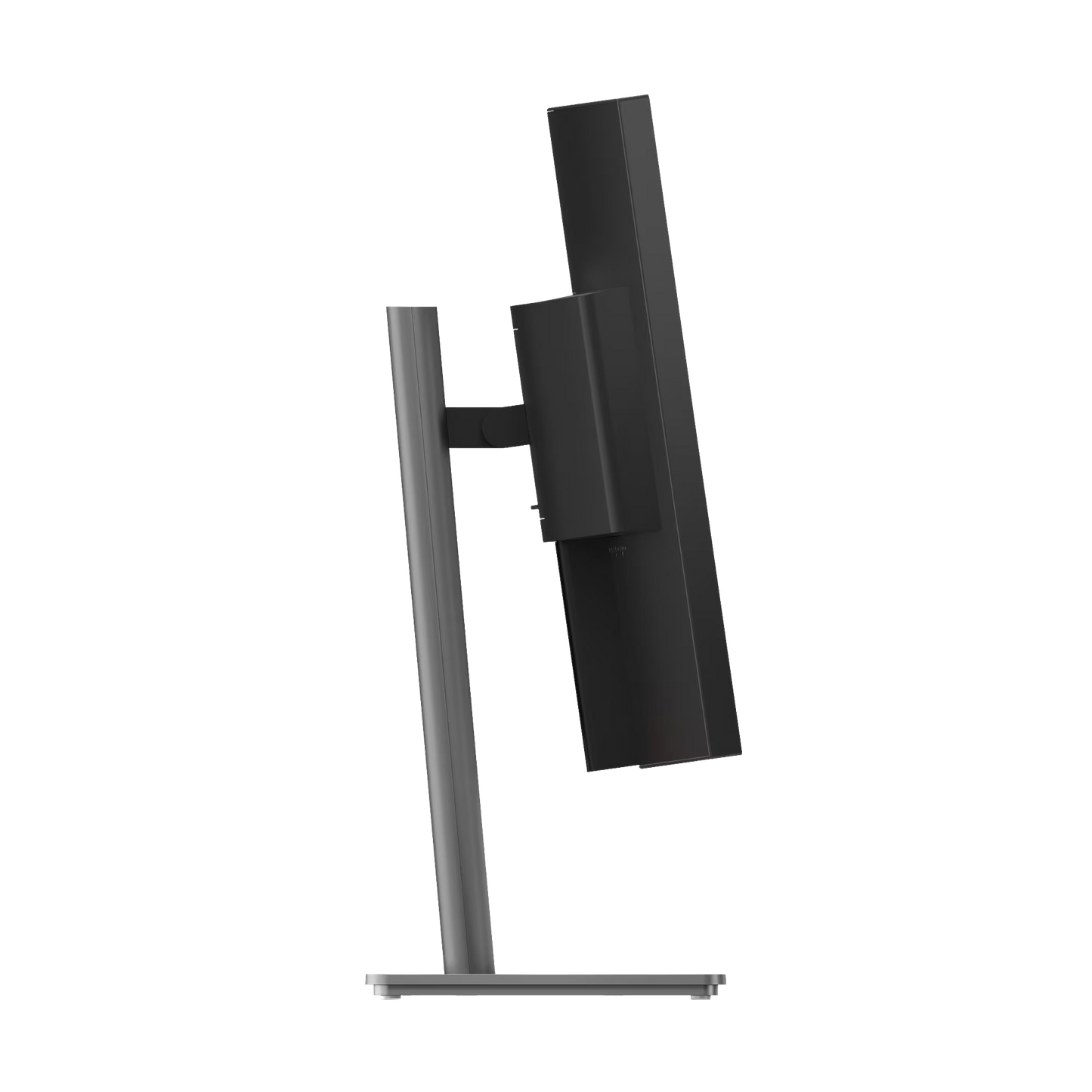

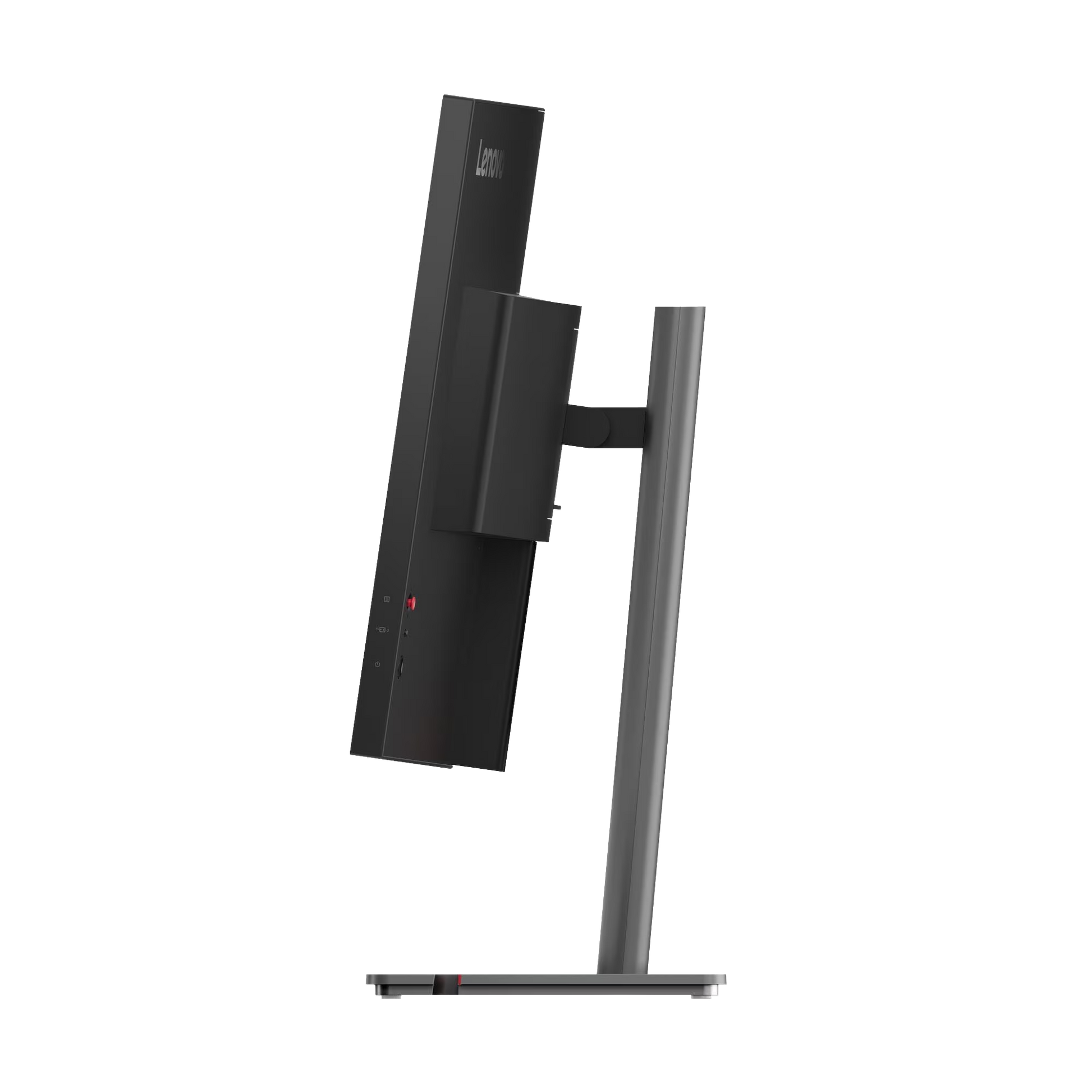

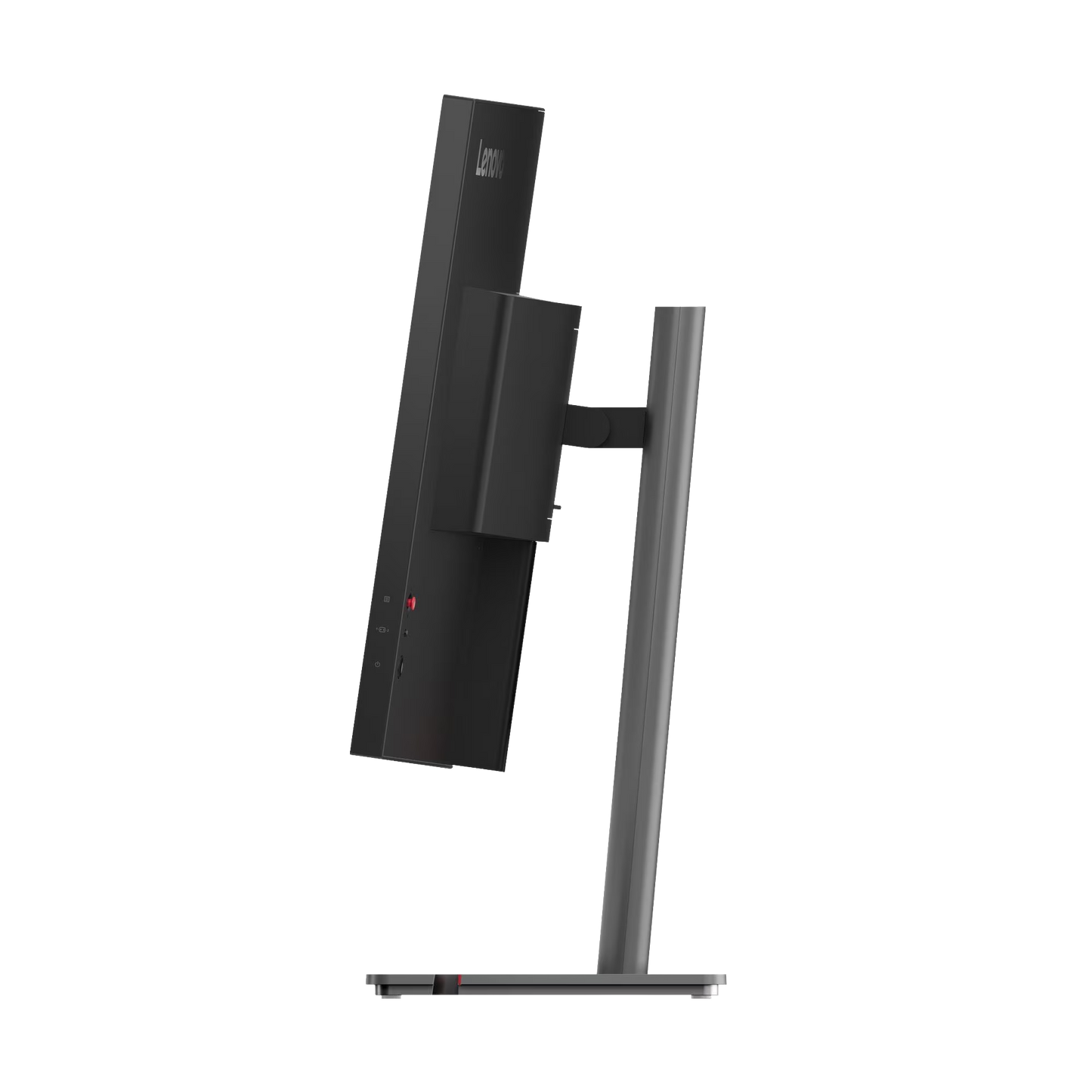

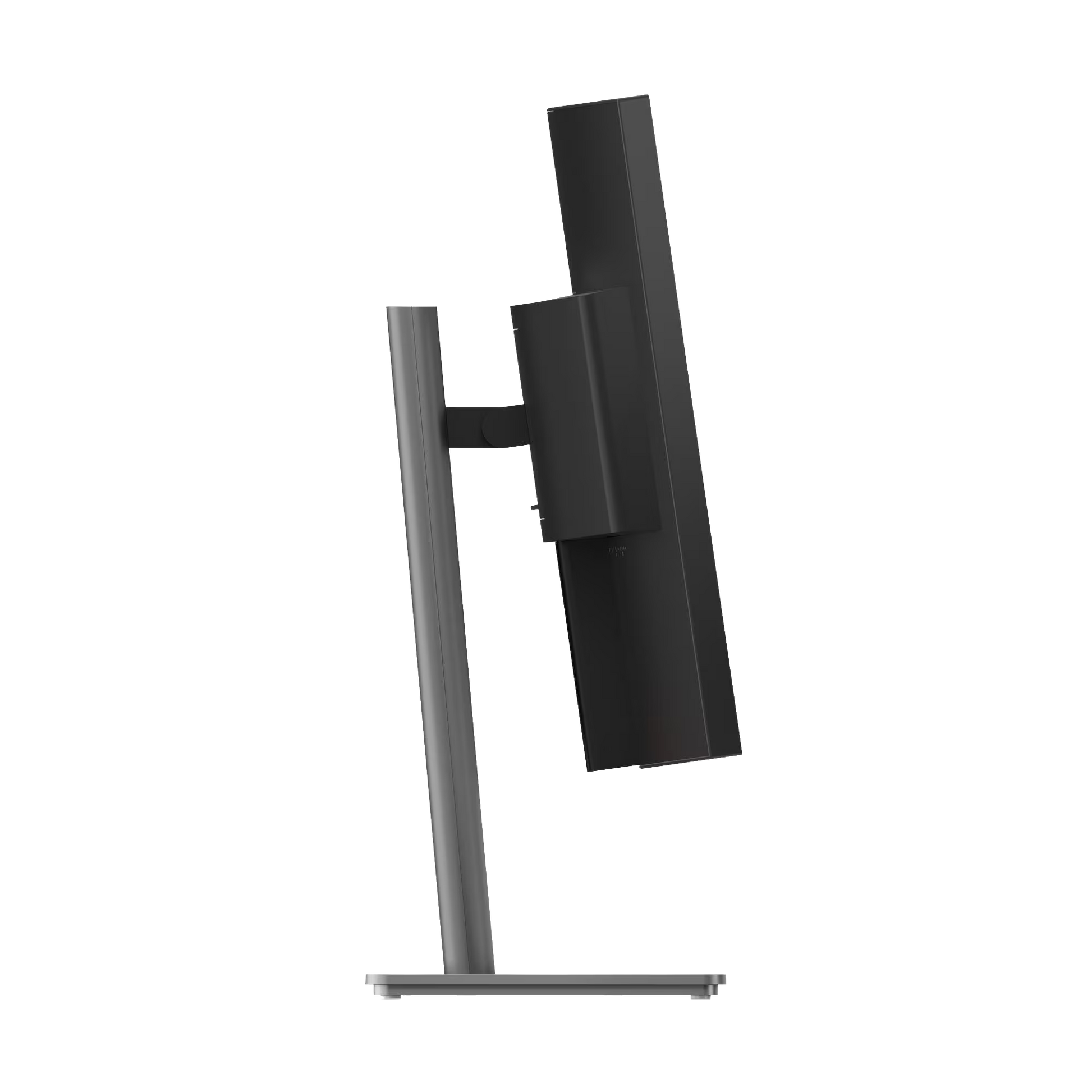

| Stand | Tilt, Swivel, Height Adjust Stand |
| Case Color | Eclipse Black |
| Side Bezel Width | 2.0 mm |
| Mounting | Supports VESA mount 100 x 100 mm |
| ThinkCentre M Series Support | Tiny Support |
| Dimensions (WxDxH) | Head Only | 947.6 x 105.3 x 419.5 mm (37.31 x 4.15 x 16.52 inches) The system dimensions may vary depending on configurations. |
| Dimensions (WxDxH) | Lowest Position | 947.6 x 227.1 x 453.5 mm (37.31 x 8.94 x 17.85 inches) The system dimensions may vary depending on configurations. |
| Dimensions (WxDxH) | Highest Position | 947.6 x 227.1 x 608.5 mm (37.31 x 8.94 x 23.96 inches) The system dimensions may vary depending on configurations. |
| Packaging Dimensions (WxDxH) | 1071.0 x 227.0 x 525.0 mm (42.17 x 8.94 x 20.67 inches) |
| Weight | Monitor With Stand | 13.5 kg (29.8 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| Weight | Monitor Head Only | 9.7 kg (21.4 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| Packaging Weight | 20.5 kg (45.1 lbs) |
| CONNECTIVITY | |
| USB Port | 1x Thunderbolt 4 (40Gbps, PD3.1 up to 140W, DP1.4 Alt Mode HBR3, USB upstream), 1x USB-B (USB 5Gbps, USB upstream), 5x USB-A (USB 5Gbps, 1x BC 1.2, USB downstream), 2x USB-C (USB 5Gbps, 15W PD, data only, USB downstream) |
| Video Connector | 1x Thunderbolt 4 (40Gbps), 1x Thunderbolt 4 Out, 1x HDMI 2.1 FRL, 1x DP 1.4 (HBR3), 1x DP 1.4 Out |
| Network Connectivity | 1x RJ45, Ethernet (10M/100M/1000M/2500M) |
| SERVICE | |
| Base Warranty | 3-year limited warranty |
| CERTIFICATIONS | |
| Environmental Certification | Energy Star Certified, TCO 10, TCO Edge 2.1, EPEAT Gold, EU Energy Level (Level-F), Volatile Organic Compound Certification, RoHS |
| Ergonomic Certification | Eyesafe Display 2.0, TÜV Rheinland Low Blue Light (Hardware solution), TÜV Rheinland In-Plane Switching Black, TÜV Rheinland Eye Comfort (5 Stars) |
| Sync Technology | None |
| Special Features | HDR10 Compliance |
| Special Features | Factory Calibration: Avg. Delta E<2 at sRGB and DCI-P3 |
| Special Features | Picture In Picture (PIP) / Picture By Picture (PBP) Support |
| Special Features | Lenovo ThinkColour (Lenovo Accessories and Display Manager) Support Lenovo ThinkColour supports Windows 10 11, Mac OS (functions vary across systems). Lenovo Accessories and Display Manager is formerly Lenovo Display Control Center. |
| Special Features | AI Power Saving Mode |
| Special Features | DP Power Saving (Panel Replay) |
| Special Features | KVM Switch (with eKVM) |
| Special Features | LDFM (Lenovo Display Fleet Manager) |
| Special Features | Mirrored Power Button |
| Special Features | Multi-sync |
| Special Features | Natural Low Blue Light |
| Special Features | Smart Power |
| Special Features | Smart Sensor (Ambient Light Sensor) |
| Special Features | True Split |
| SOFTWARE | |
| Operating System | Support Windows 10, Windows 11 |
| ACCESSORIES | |
| In the Box | Monitor with stand |
| In the Box | 1x DP 1.4 cable (1.8m) |
| In the Box | 1x USB-A to USB-B Gen 1 cable (1.8m) |
| In the Box | 1x Thunderbolt cable (1m, 40Gbps), for models 64B4Y** and 64B4X** only |
| In the Box | 1x Power cable (1.8m) |
| In the Box | Factory calibration report |
| In the Box | Quick setup guide |
