| PERFORMANCE | |
|---|---|
| Processor | Intel Core Ultra 9 285, 24C (8P + 16E) / 24T, Max Turbo up to 5.6GHz, 36MB Intel Smart Cache |
| AI PC Category | AI-Ready Workstations With scalable configurations of higher-performance CPUs and professional NVIDIA RTX GPUs, in addition to advantage of the same modern AI PC technology, AI-Ready workstation power the demanding AI consumption development workflows. |
| Processor Sockets | 1x FCLGA1851 |
| Integrated Graphics | Integrated Intel Graphics |
| Discrete Graphics | None |
| Chipset | Intel W880 Chipset |
| Memory | 2x 16GB UDIMM DDR5-5600 Non-ECC |
| Memory Slots | Four DDR5 UDIMM slots, dual-channel capable |
| Max Memory | Up to 256GB (4x 64GB DDR5 CUDIMM) The max memory is based on the test results with current Lenovo memory offerings. |
| PCIe NVMe Controller | Integrated NVMe Controller |
| PCIe NVMe Drive | 1x 1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal |
| SATA Controller | Onboard Intel RSTe SATA RAID |
| SATA/SAS Drive | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC623-CG codec |
| Power Supply | 750W Platinum Fixed |
| DESIGN | |
| Keyboard | USB, Calliope, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Dimensions (WxDxH) | 180 x 370 x 415 mm (7.09 x 14.57 x 16.34 inches) The system dimensions may vary depending on configurations. |
| Weight | 14.38 kg (31.70 lbs, maximum configuration) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| Onboard Ethernet | Intel I219-LM, 1x GbE RJ-45 |
| Optional Ethernet | None |
| WLAN + Bluetooth | None |
| Card Reader | SD Card Reader |

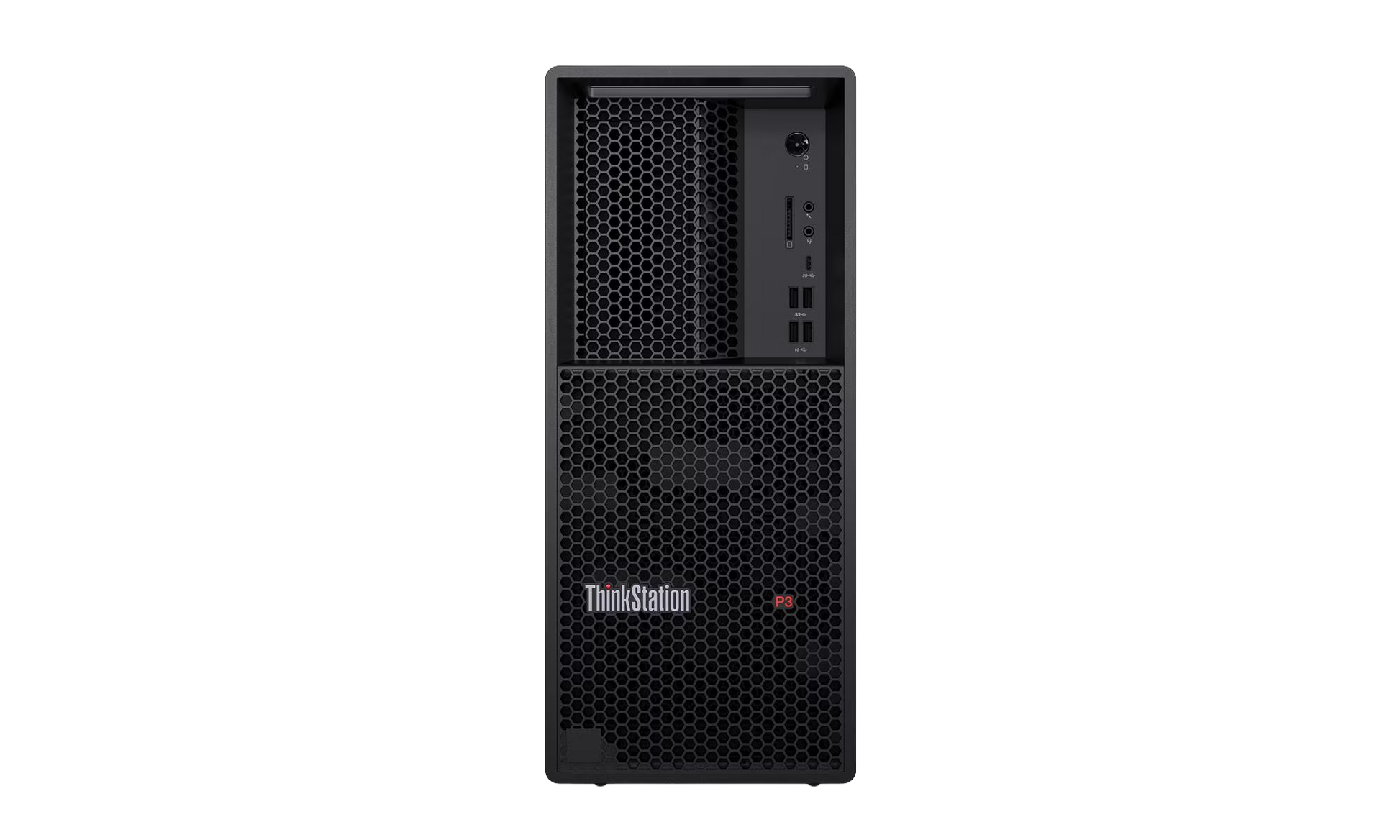

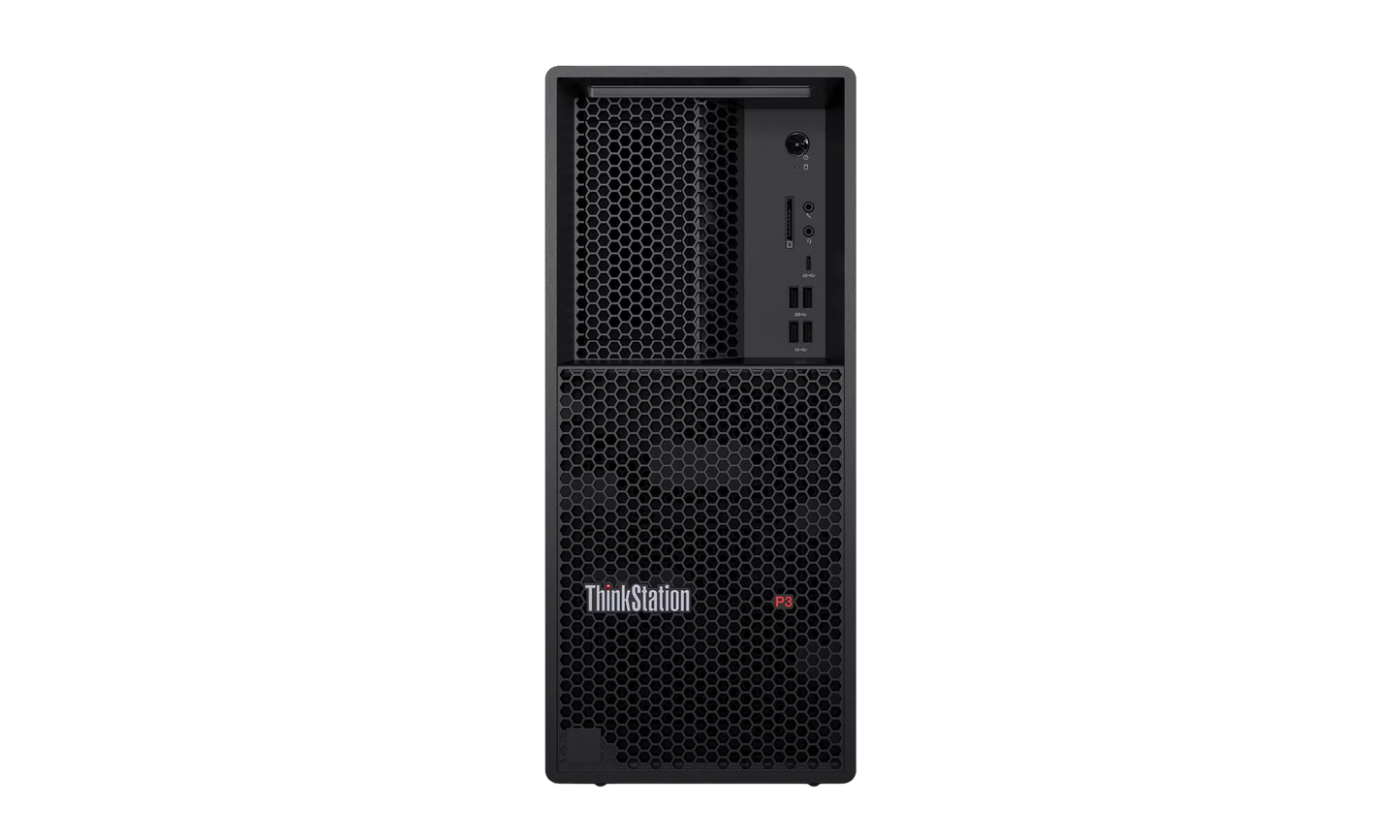

| Front Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Front Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) |
| Front Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) |
| Front Ports | 1x microphone (3.5mm) |
| Optional Front Ports (configured) | 1x SD card reader |

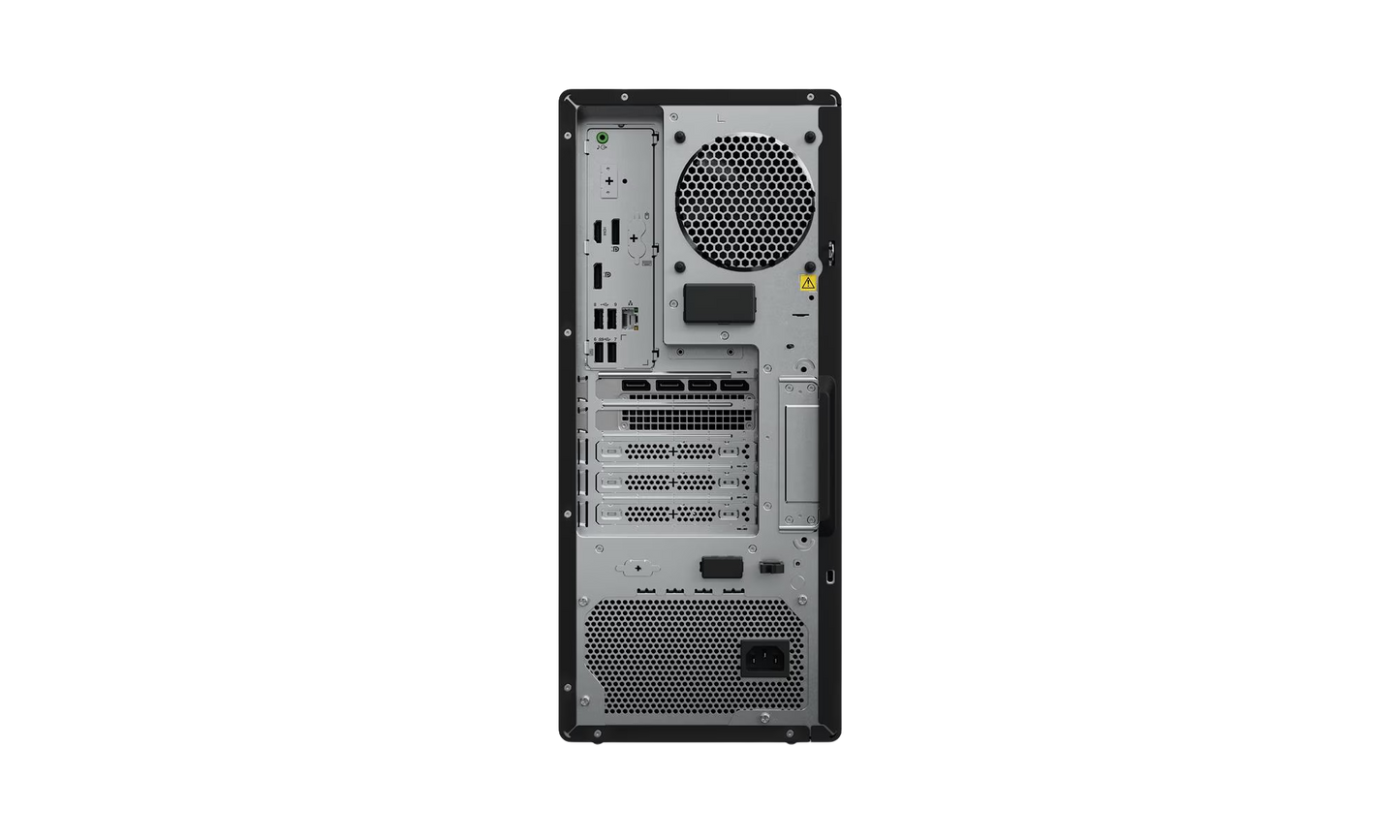

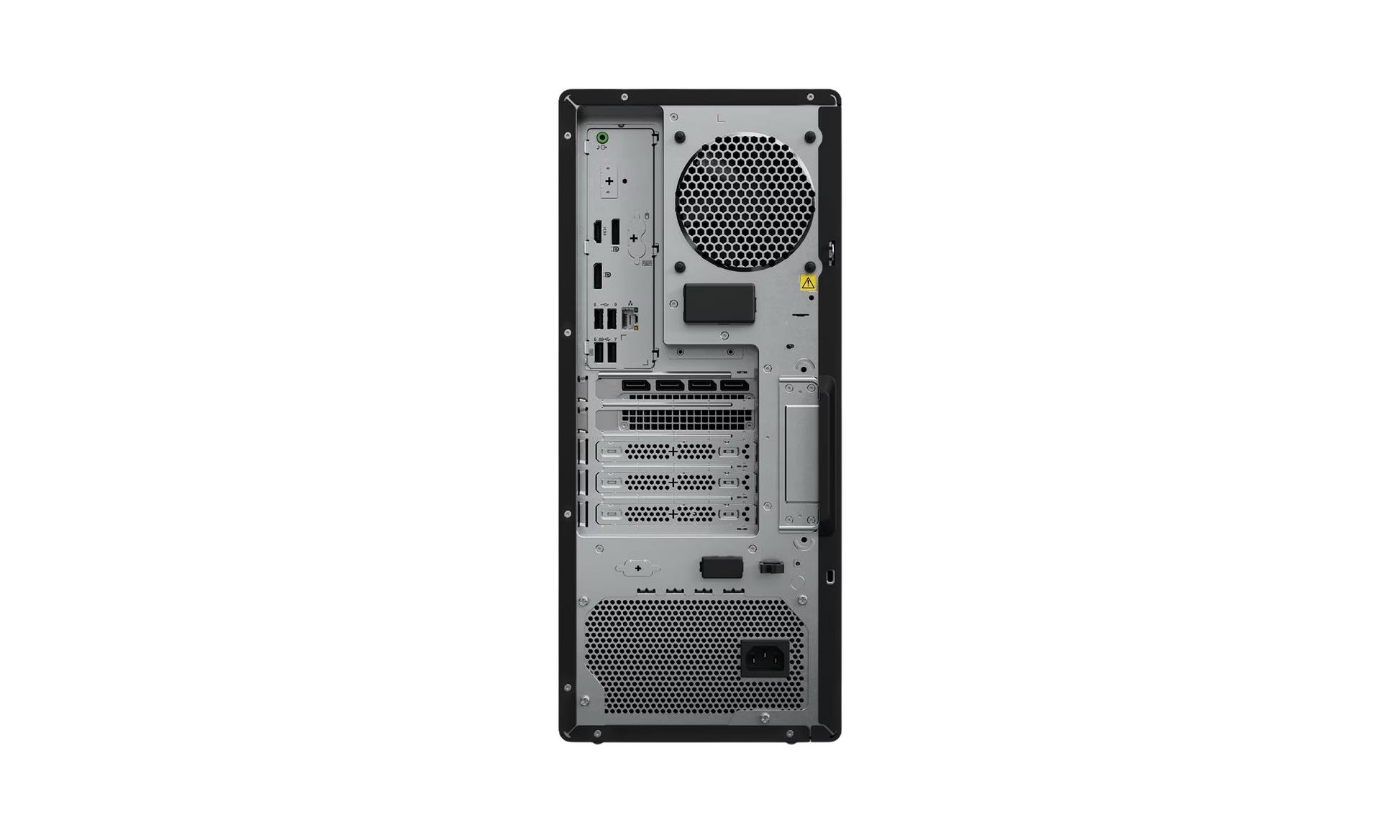

| Rear Ports | 2x USB-A (Hi-Speed USB / USB 2.0) |
| Rear Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On |
| Rear Ports | 1x HDMI 2.1 TMDS |
| Rear Ports | 2x DisplayPort 1.4 |
| Rear Ports | 1x Ethernet (GbE RJ-45) |
| Rear Ports | 1x line-out (3.5mm) |
| Optional Rear Ports (configured) | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Physical Locks | Padlock Loop |
| Cover Lock | None |
| Cable Lock | No Cable |
| Chassis Intrusion Switch | None |
| MANAGEABILITY | |
| System Management | Intel vPro Enterprise with Intel AMT 16 |
| SERVICE | |
| Base Warranty | 3-year, Onsite |
| Included Upgrade | 1Y Premier Support from 3Y Onsite Windchill bundles (CPN) |
| CERTIFICATIONS | |
| ISV Certifications | Please visit <a href="https://www.thinkworkstations.com/isv-certifications/">ISV certifications for Lenovo Workstations</a> |
| Mil-Spec Test | MIL-STD-810H military test passed |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | None |
