| PERFORMANCE | |
|---|---|
| Processor | Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB Intel Smart Cache |
| AI PC Category | AI-Ready Workstations With scalable configurations of higher-performance CPUs and professional NVIDIA RTX GPUs, in addition to advantage of the same modern AI PC technology, AI-Ready workstation power the demanding AI consumption development workflows. |
| Processor Sockets | 1x FCLGA1700 |
| Integrated Graphics | Integrated Intel UHD Graphics 770 |
| Discrete Graphics | None |
| Chipset | Intel W680 Chipset |
| Memory | 1x 32GB SODIMM DDR5-4800 Non-ECC |
| Memory Slots | Four DDR5 SODIMM slots, dual-channel capable |
| Max Memory | Up to 192GB (4x 48GB DDR5 SODIMM) The max memory is based on the test results with current Lenovo memory offerings. |
| PCIe NVMe Controller | Integrated NVMe controller |
| PCIe NVMe Drive | 1x 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal |
| SATA Controller | Integrated SATA controller |
| SATA/SAS Drive | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC897-Q codec |
| Power Supply | 170W 90% Adapter |
| DESIGN | |
| Keyboard | USB Traditional Keyboard, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Dust Filter | None |
| Dimensions (WxDxH) | 87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches) The system dimensions may vary depending on configurations. |
| Weight | 3.6 kg (7.94 lbs, maximum configuration) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| Onboard Ethernet | Intel I225-LM + I210-AT, 2x RJ-45, 2.5GbE + GbE |
| Optional Ethernet | None |
| WLAN + Bluetooth | None |

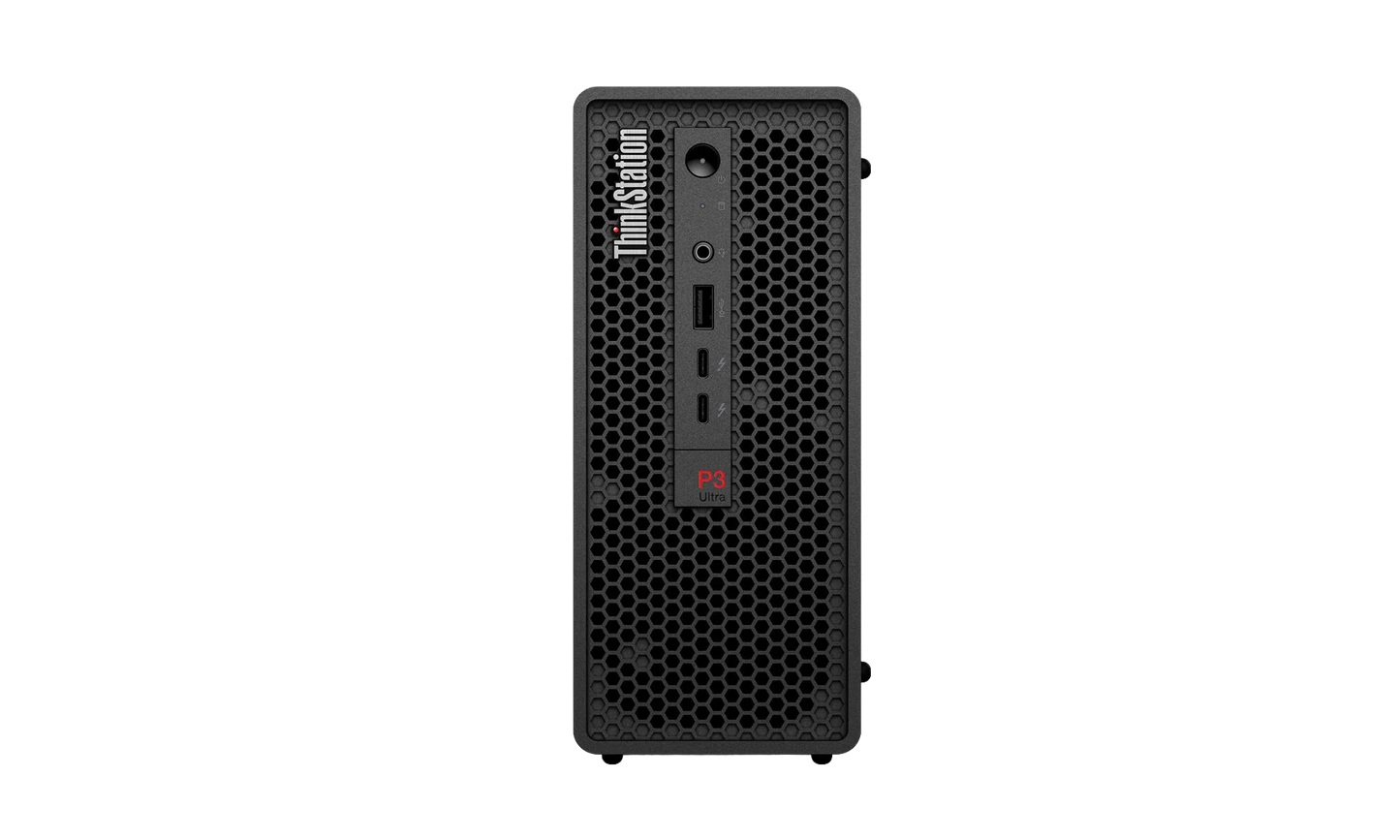

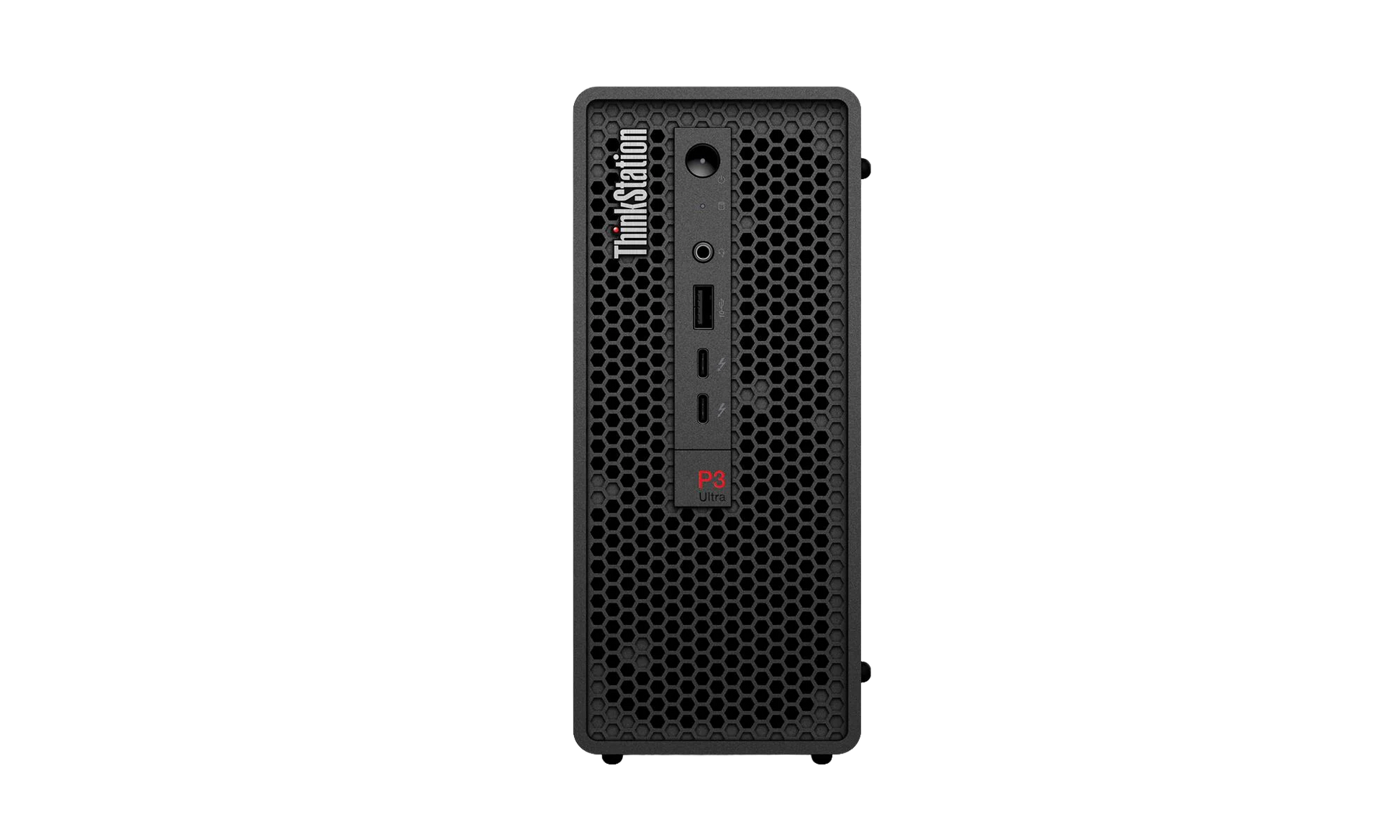

| Front Ports | 2x Thunderbolt 4 |
| Front Ports | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) |

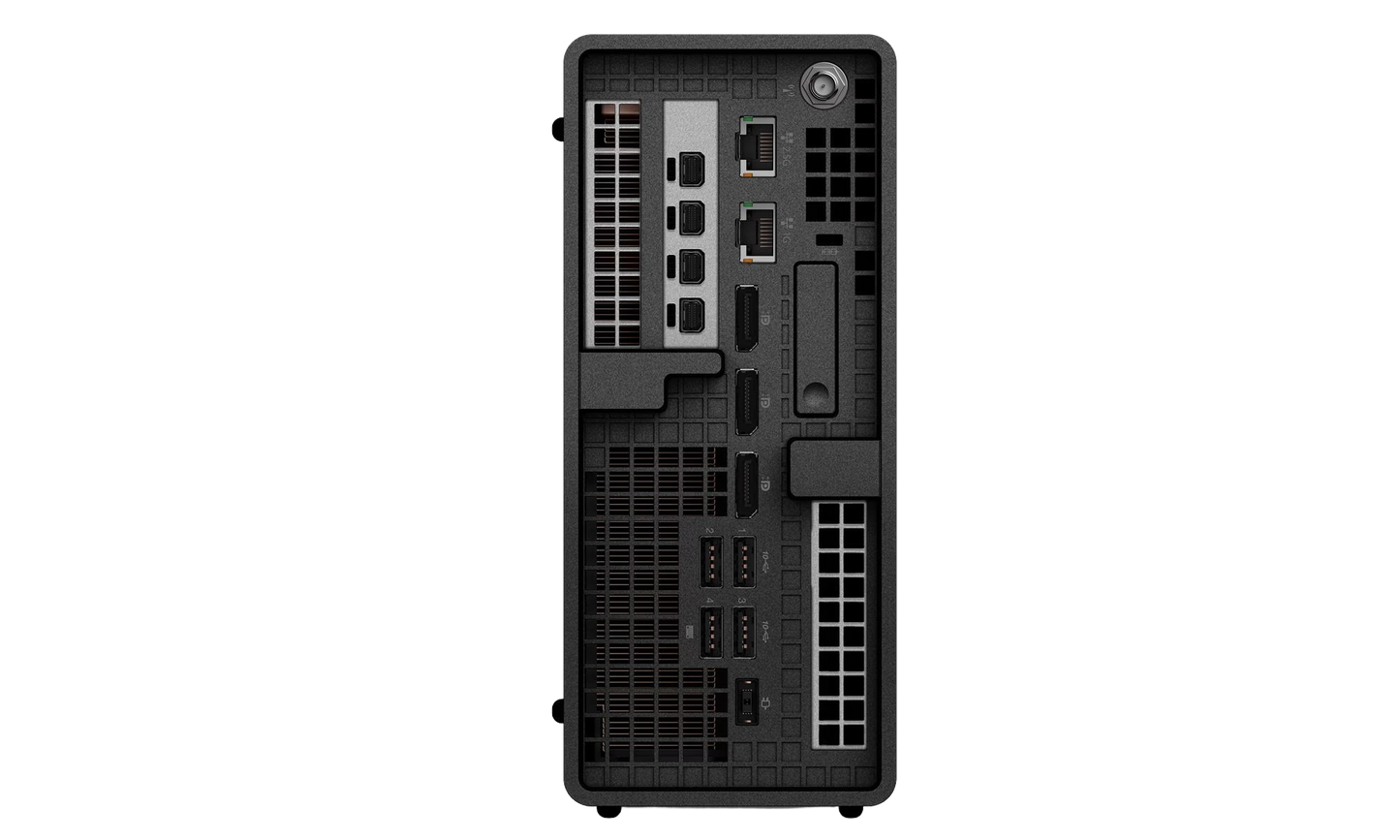

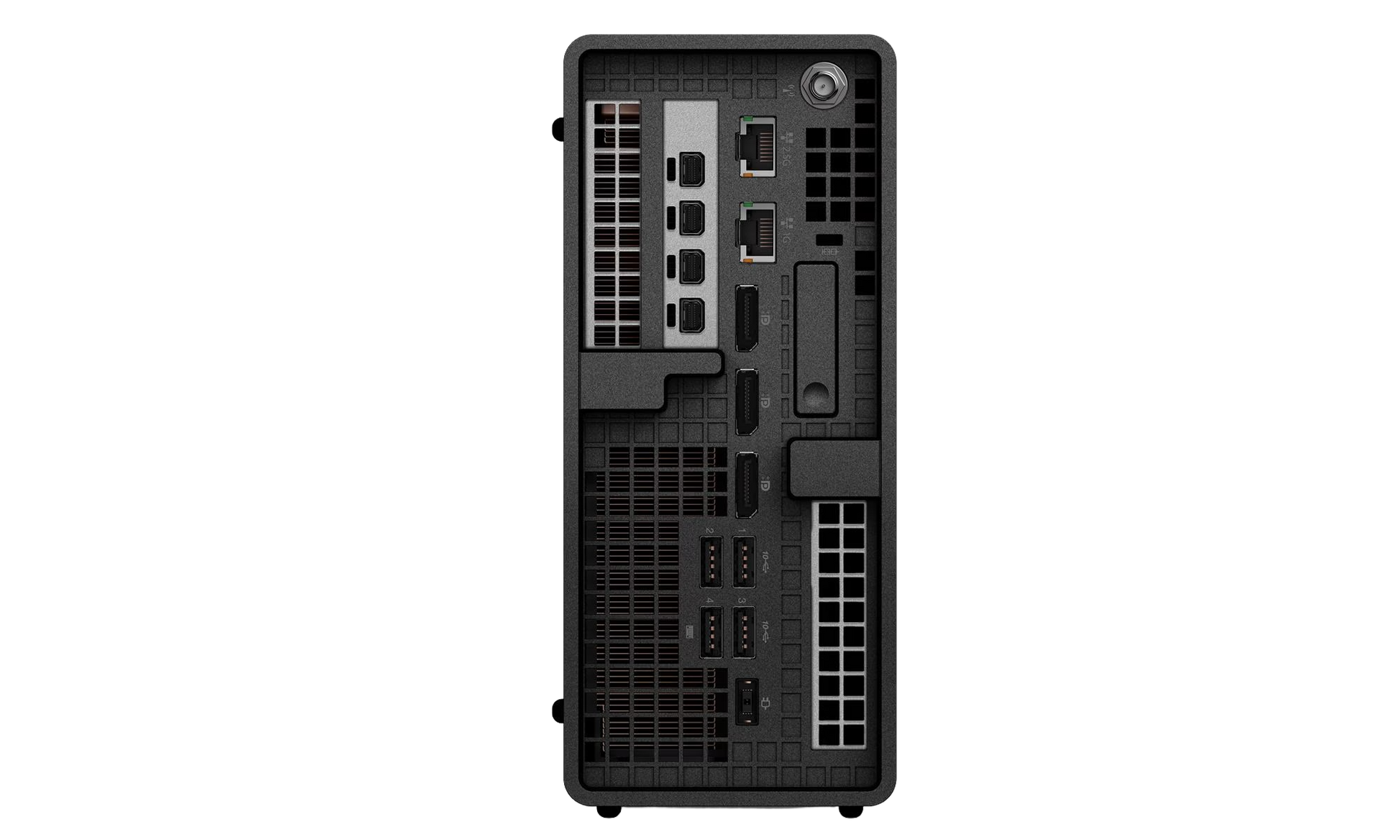

| Rear Ports | 4x USB-A (USB 10Gbps / USB 3.2 Gen 2) For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 3x DisplayPort 1.2 For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 1x Ethernet (2.5GbE RJ-45) For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 1x Ethernet (GbE RJ-45) For video ports on discrete graphics, please see graphics section. |
| Optional Rear Ports (configured) | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| MANAGEABILITY | |
| System Management | Intel vPro Enterprise with Intel AMT 16 Intel vPro offers a superset of DASH’s defined capabilities. |
| SERVICE | |
| Base Warranty | 3-year, Onsite |
| Included Upgrade | 1Y Premier Support from 3Y Onsite Windchill bundles (CPN) |
| CERTIFICATIONS | |
| ISV Certifications | Please visit <a href="https://www.thinkworkstations.com/isv-certifications/">ISV certifications for Lenovo Workstations</a> |
| Mil-Spec Test | MIL-STD-810H military test passed |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | None |
