| PERFORMANCE | |
|---|---|
| Processor | Intel Xeon w7-3565X,32C (32P + 0E) / 64T, 2.5 / 4.8GHz, 82.5MB |
| AI PC Category | AI-Ready Workstations With scalable configurations of higher-performance CPUs and professional NVIDIA RTX GPUs, in addition to advantage of the same modern AI PC technology, AI-Ready workstation power the demanding AI consumption development workflows. |
| Processor Sockets | 1x FCLGA4677 |
| Discrete Graphics | None |
| Chipset | Intel W790 Chipset |
| Memory | 1x 64GB RDIMM DDR5-4800 ECC System comes with DDR5-4800 memory and some configurations will run at 4400 MT/s due to the memory support capability of processor. |
| Memory Slots | 8 DDR5 DIMM slots, 8 channels capable |
| Max Memory | Up to 1TB (8x 128GB RDIMM) The max memory is based on the test results with current Lenovo memory offerings. |
| PCIe NVMe Controller | Integrated NVMe Controller, non-RAID |
| PCIe NVMe Drive | 1x 1TB SSD M.2 2280 PCIe 5.0x4 Performance NVMe Opal |
| SATA Controller | Onboard Intel RSTe SATA |
| SATA/SAS Drive | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC897-Q codec |
| Power Supply | 1400W Platinum Fixed Countries with input voltage is 100 - 111.9V, output power is limited to 1125W; input voltage is 120V, output power is limited to 1250W. |
| DESIGN | |
| Keyboard | USB Traditional Keyboard, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Dimensions (WxDxH) | 175 x 508 x 434.4 mm (6.9 x 20 x 17.1 inches, with feet) The system dimensions may vary depending on configurations. |
| Weight | 24.5 kg (54 lbs, maximum configuration) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| Onboard Ethernet | Intel I219-LM + Marvell AQtion AQC-113C, 2x RJ-45, GbE + 10GbE |
| Optional Ethernet | None |
| WLAN + Bluetooth | None |
| Card Reader | 15-in-1 Card Reader |

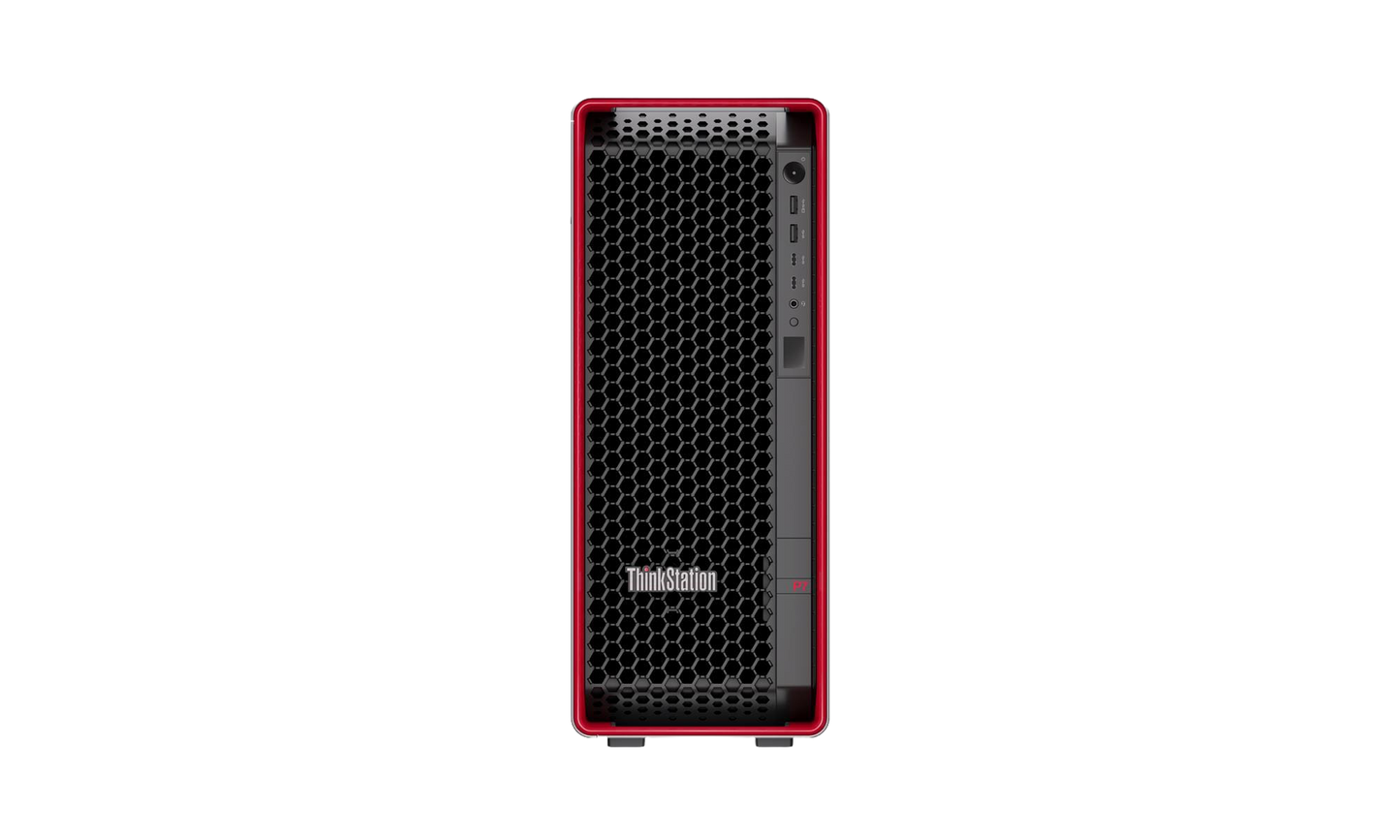

| Front Ports | 1x headphone / microphone combo jack (3.5mm) |
| Optional Front Ports (configured) | 2x USB-C 3.2 Gen 2 |
| Optional Front Ports (configured) | 2x USB 3.2 Gen 2 |

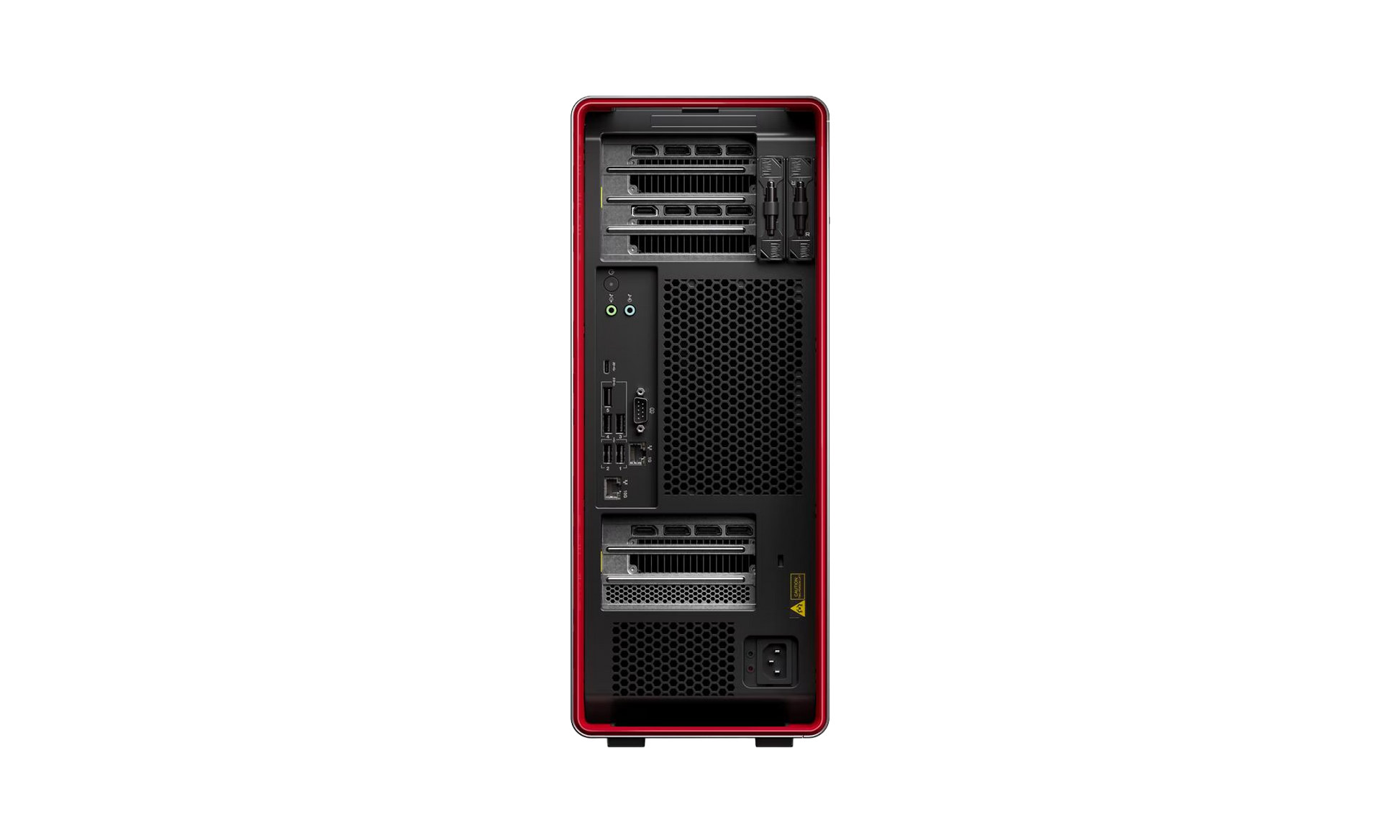

| Rear Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Rear Ports | 2x USB-A (Hi-Speed USB / USB 2.0) |
| Rear Ports | 3x USB-A (USB 10Gbps / USB 3.2 Gen 2) |
| Rear Ports | 1x Ethernet (10GbE RJ-45) |
| Rear Ports | 1x Ethernet (GbE RJ-45) |
| Rear Ports | 1x line-in (3.5mm) |
| Rear Ports | 1x line-out (3.5mm) |
| Optional Rear Ports (configured) | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks | Access panel lock kit with common key |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Cover Lock | Lock Kit with Common Key |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| MANAGEABILITY | |
| System Management | Intel vPro Enterprise with Intel AMT 16 Intel vPro offers a superset of DASH’s defined capabilities. |
| Diagnostic | Front Diagnostic Panel with QR code |
| SERVICE | |
| Base Warranty | 3-year, Onsite |
| Included Upgrade | 3Y Premier TS WHB (CPN) |
| CERTIFICATIONS | |
| ISV Certifications | Please visit <a href="https://www.thinkworkstations.com/isv-certifications/">ISV certifications for Lenovo Workstations</a> |
| SOFTWARE | |
| Operating System | Windows 11 Pro for Workstations, German |
| Bundled Software | None |
