| PERFORMANCE | |
|---|---|
| Processor | AMD Ryzen Threadripper PRO 5945WX (12C / 24T, 4.1 / 4.5GHz, 6MB L2 / 64MB L3) |
| AI PC Category | AI-Ready Workstations With scalable configurations of higher-performance CPUs and professional NVIDIA RTX GPUs, in addition to advantage of the same modern AI PC technology, AI-Ready workstation power the demanding AI consumption development workflows. |
| Processor Sockets | 1x sWRX8 |
| Discrete Graphics | None |
| Chipset | AMD WRX80 Chipset |
| Memory | 2x 32GB RDIMM DDR4-3200 ECC |
| Memory Slots | 8 DDR4 DIMM slots, 8 channels capable |
| Max Memory | Up to 1TB (8x 128GB RDIMM) The max memory is based on the test results with current Lenovo memory offerings. |
| PCIe NVMe Controller | Integrated NVMe Controller |
| PCIe NVMe Drive | 1x 1TB SSD M.2 2280 4.0x4 NVMe Opal |
| SATA Controller | Integrated SATA Controller |
| SATA/SAS Drive | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC4050H codec |
| Power Supply | 1000W Platinum Fixed |
| DESIGN | |
| Keyboard | USB Calliope Keyboard, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Dimensions (WxDxH) | 165 x 455x 446 mm (6.5 x 17.9 x 17.6 inches) The system dimensions may vary depending on configurations. |
| Weight | 24 kg (52.91 lbs, maximum configuration) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| Onboard Ethernet | Marvell AQtion AQN-107, 1x 10GbE RJ-45 |
| Optional Ethernet | None |
| WLAN + Bluetooth | None |
| Card Reader | None |

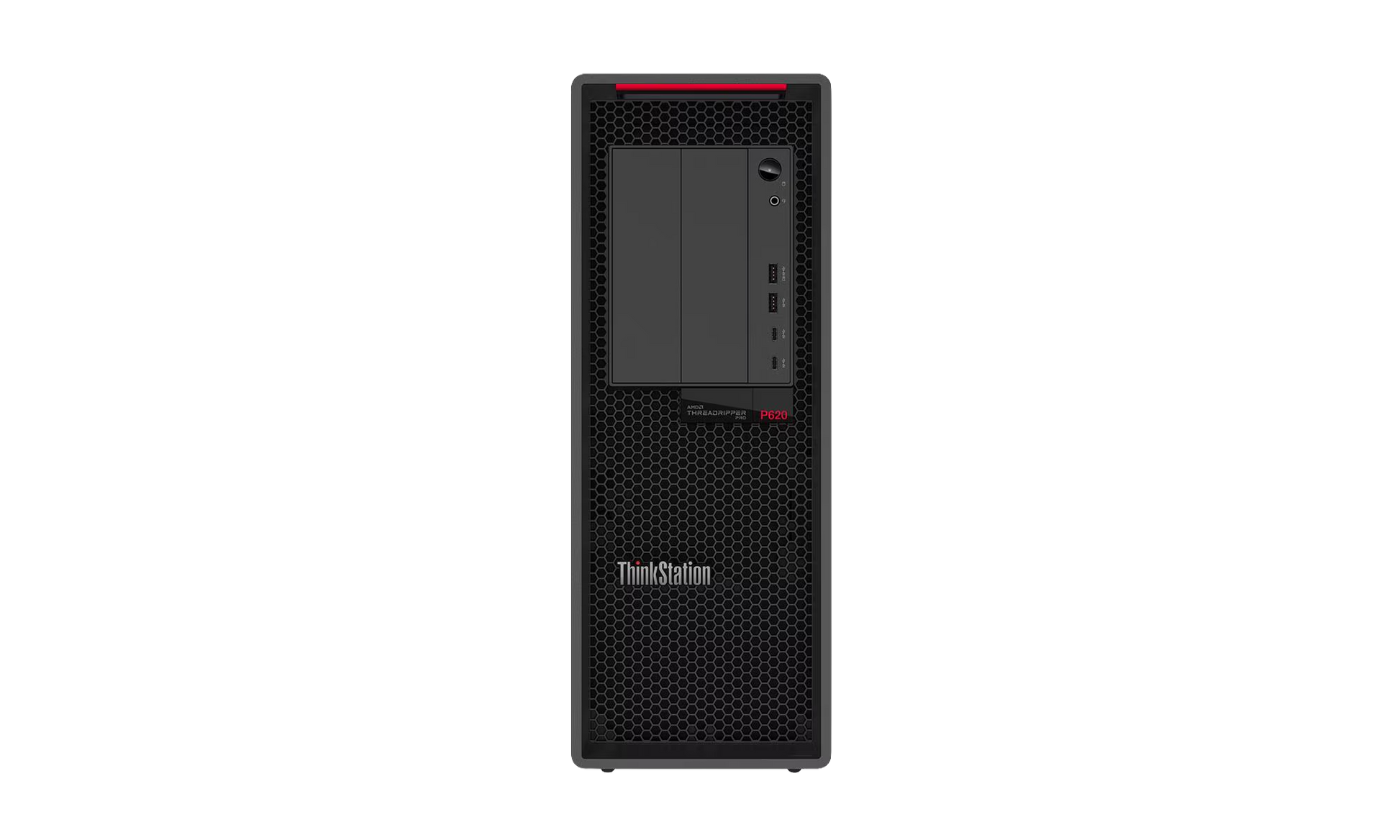

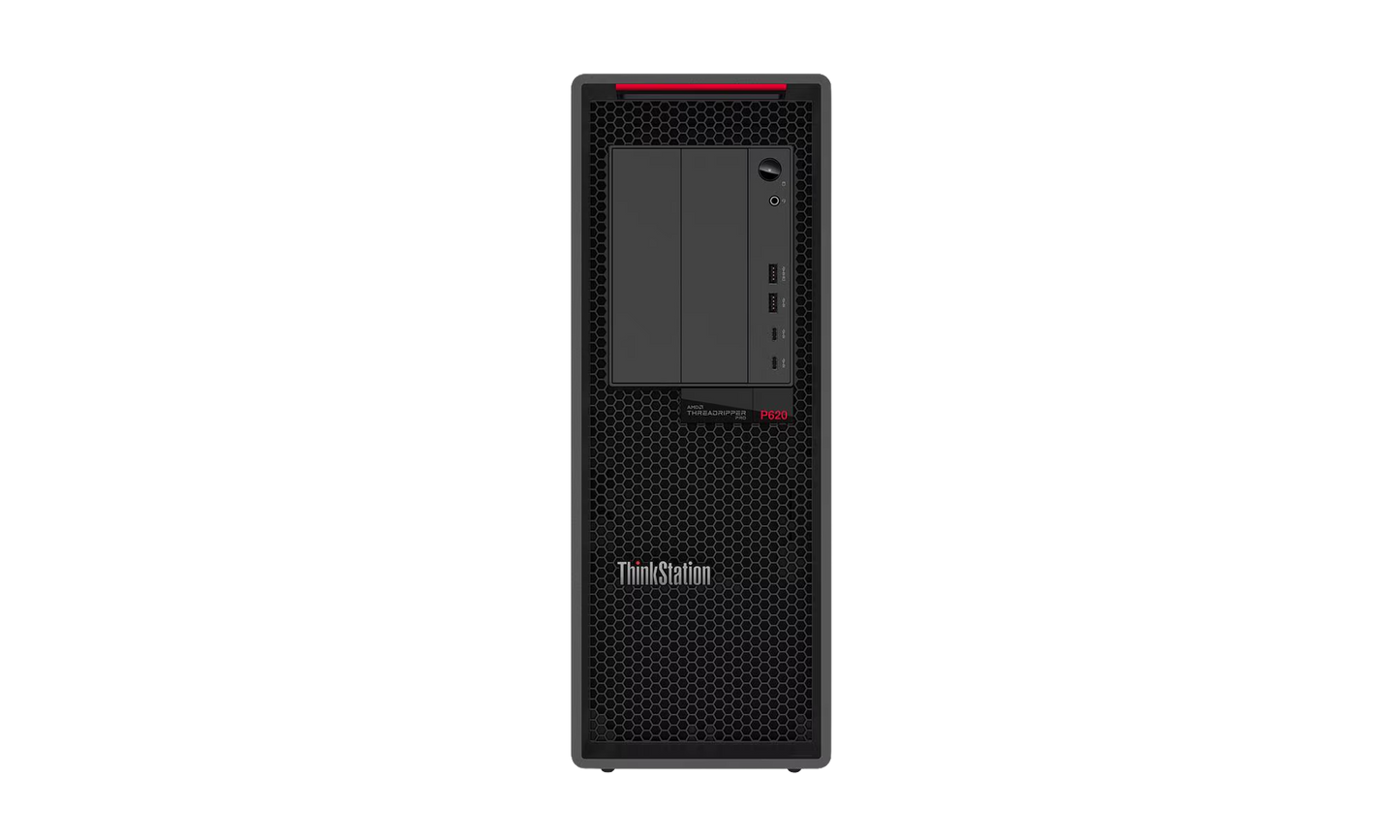

| Front Ports | 2x USB-C 3.2 Gen 2 (support data transfer) |
| Front Ports | 1x USB 3.2 Gen 2 (Always On and fast charge) |
| Front Ports | 1x USB 3.2 Gen 2 |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) |
| Optional Front Ports (configured) | None |

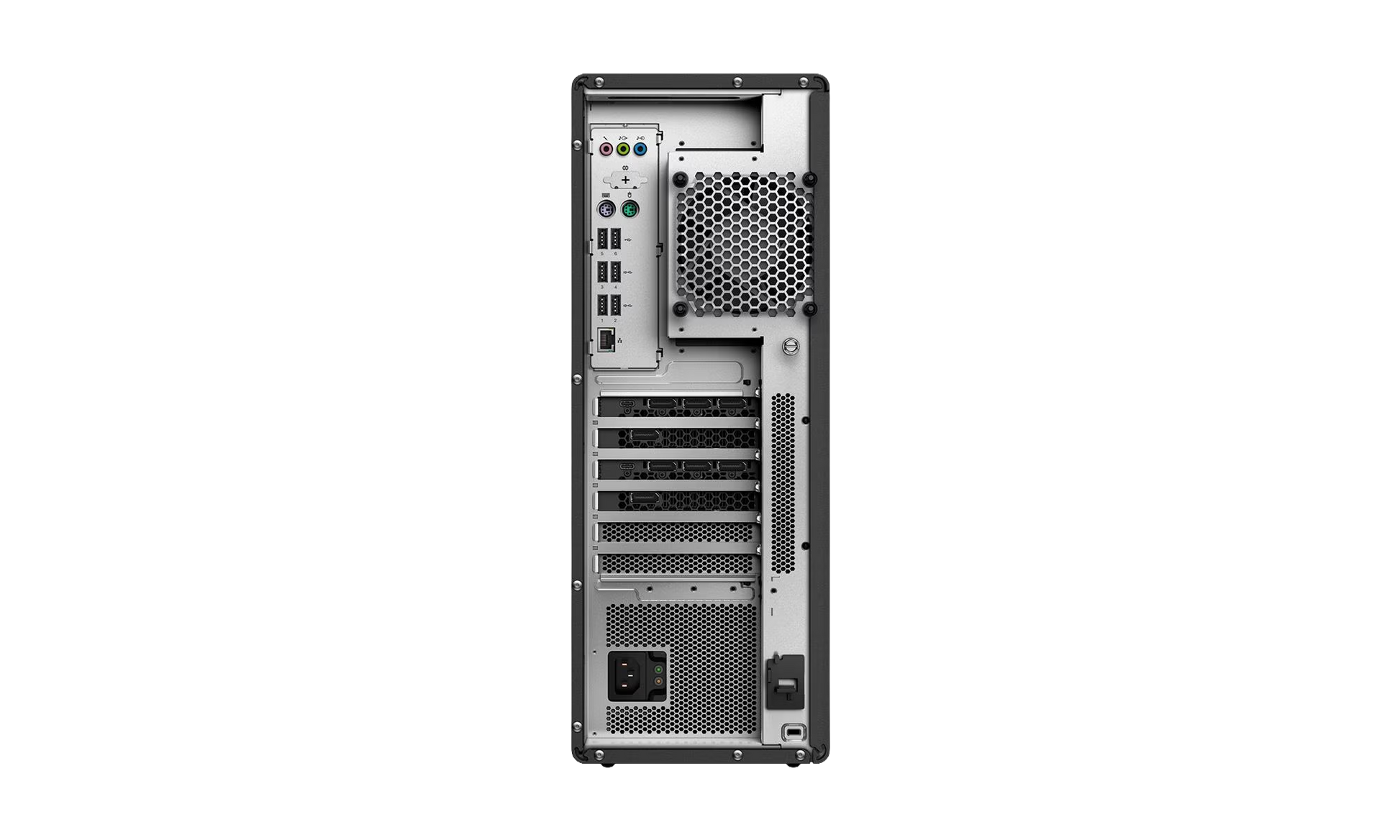

| Rear Ports | 2x USB 2.0 For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 4x USB 3.2 Gen 2 For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 1x Ethernet (10GbE RJ-45) For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 1x line-in (3.5mm) For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 1x line-out (3.5mm) For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 1x microphone (3.5mm) For video ports on discrete graphics, please see graphics section. |
| Rear Ports | 2x PS/2 ports (keyboard / mouse) For video ports on discrete graphics, please see graphics section. |
| Optional Rear Ports (configured) | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Cover Lock | None |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| MANAGEABILITY | |
| System Management | AMD PRO |
| Diagnostic | Front 4-Digit Diagnostic LED |
| SERVICE | |
| Base Warranty | 3-year, Onsite |
| Included Upgrade | 3Y Premier TS WHB (CPN) |
| CERTIFICATIONS | |
| ISV Certifications | Please visit www.thinkworkstations.com/isv-certifications/ |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | None |
