| PERFORMANCE | |
|---|---|
| Processor | AMD Ryzen 5 220 (6C / 12T, 3.2 / 4.9GHz, 6MB L2 / 16MB L3) |
| AI PC Category | Non-AI PC |
| NPU | None |
| Graphics | Integrated AMD Radeon 740M Graphics |
| Chipset | AMD SoC Platform |
| Memory | 1x 16GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5600 |
| Storage | 512GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0 |
| Storage Slot | Two M.2 slots • One M.2 2242 PCIe 4.0 x4 slot • One M.2 2280 PCIe 4.0 x4 slot |
| Max Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Card Reader | No card reader |
| Audio Chip | High Definition (HD) Audio, Senary SN6147 codec |
| Speakers | Stereo speakers, 2W x2, Dolby Atmos, audio by HARMAN |
| Microphone | 2x, Array |
| Camera | FHD 1080p + IR Hybrid with Privacy Shutter |
| Battery | 64Wh |
| Power Adapter | 65W USB-C (3-pin) |
| DESIGN | |
| Display | 14" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS. |
| Touchscreen | None |
| Screen-to-Body Ratio | 90% |
| Pen | Pen Not Supported |

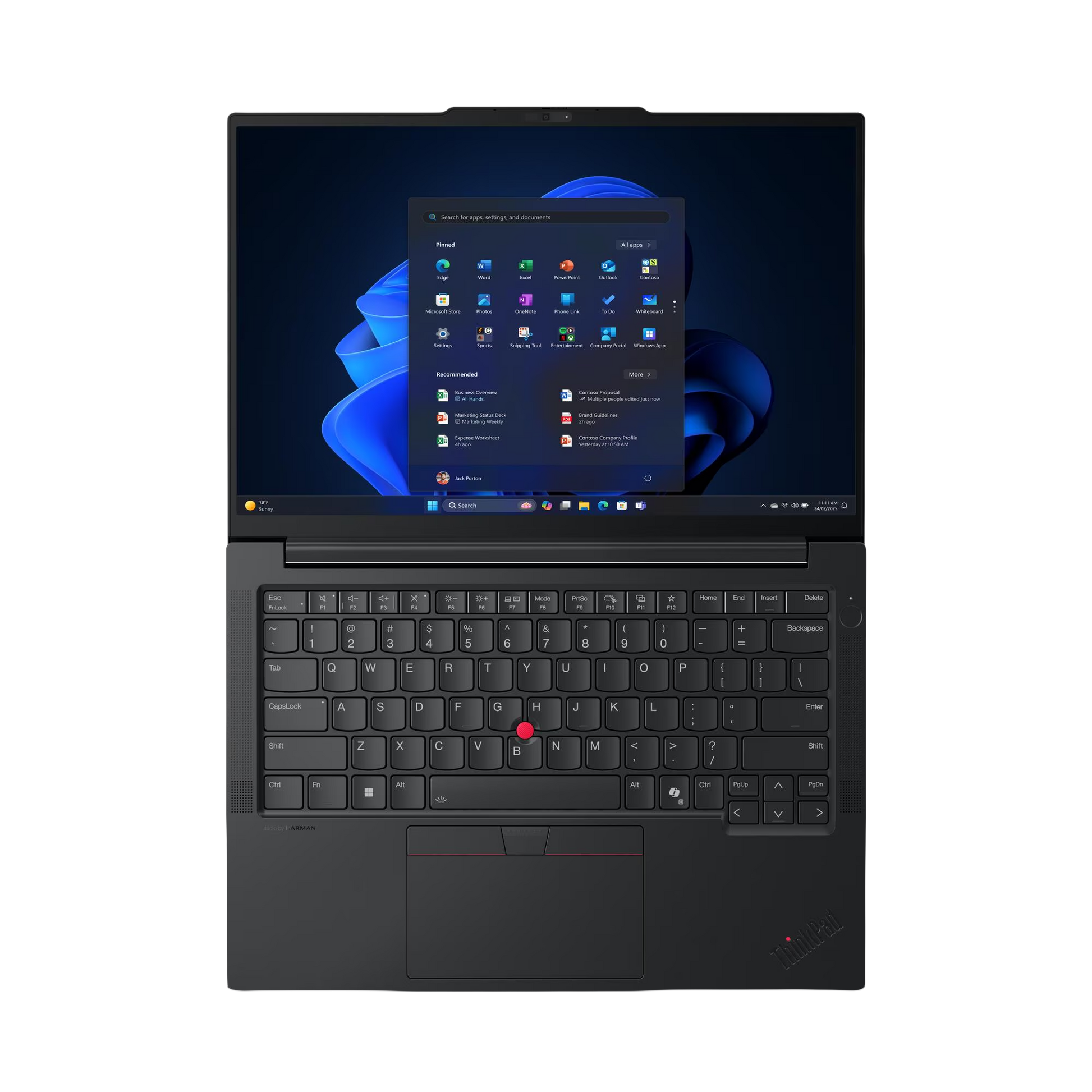

| Keyboard | Backlit, German |
| Dimensions (WxDxH) | 313 x 220.3 x 10.1/15.25 (front/rear), 19.7 (maximum) mm;
12.32 x 8.67 x 0.40/0.60 (front/rear), 0.78 (maximum) inches The system dimensions may vary depending on configurations. |
| Weight | Starting at 1.41 kg (3.11 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| Case Color | Black |
| Case Material | Aluminium (Top), Aluminium (Bottom) |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | None |
| CONNECTIVITY | |
| WLAN + Bluetooth | Wi-Fi 6E, 802.11ax 2x2 + BT5.3 |
| WWAN | WWAN Not Supported |
| SIM Card | None |
| Ethernet | 100/1000M (RJ-45) |
| NFC | None |

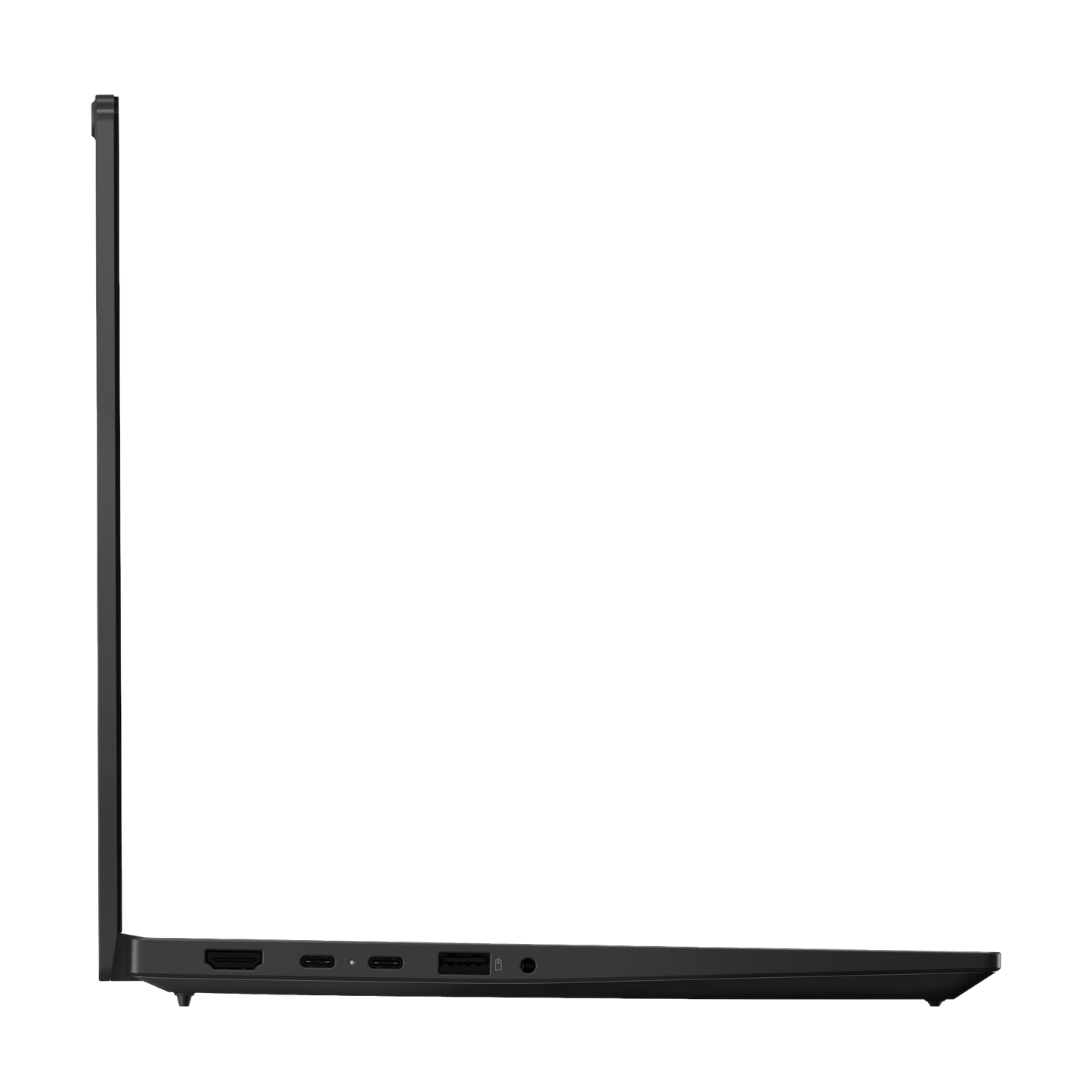

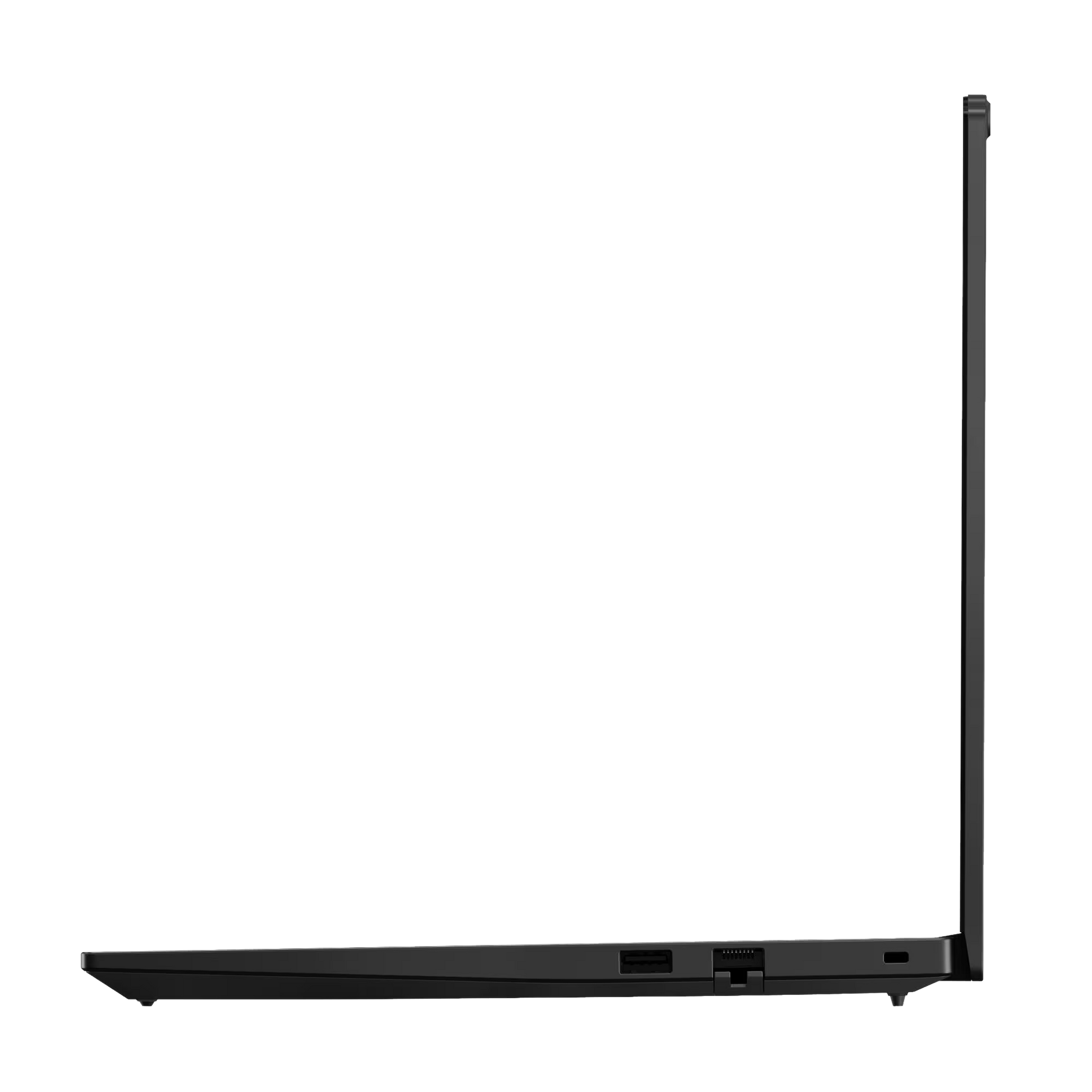

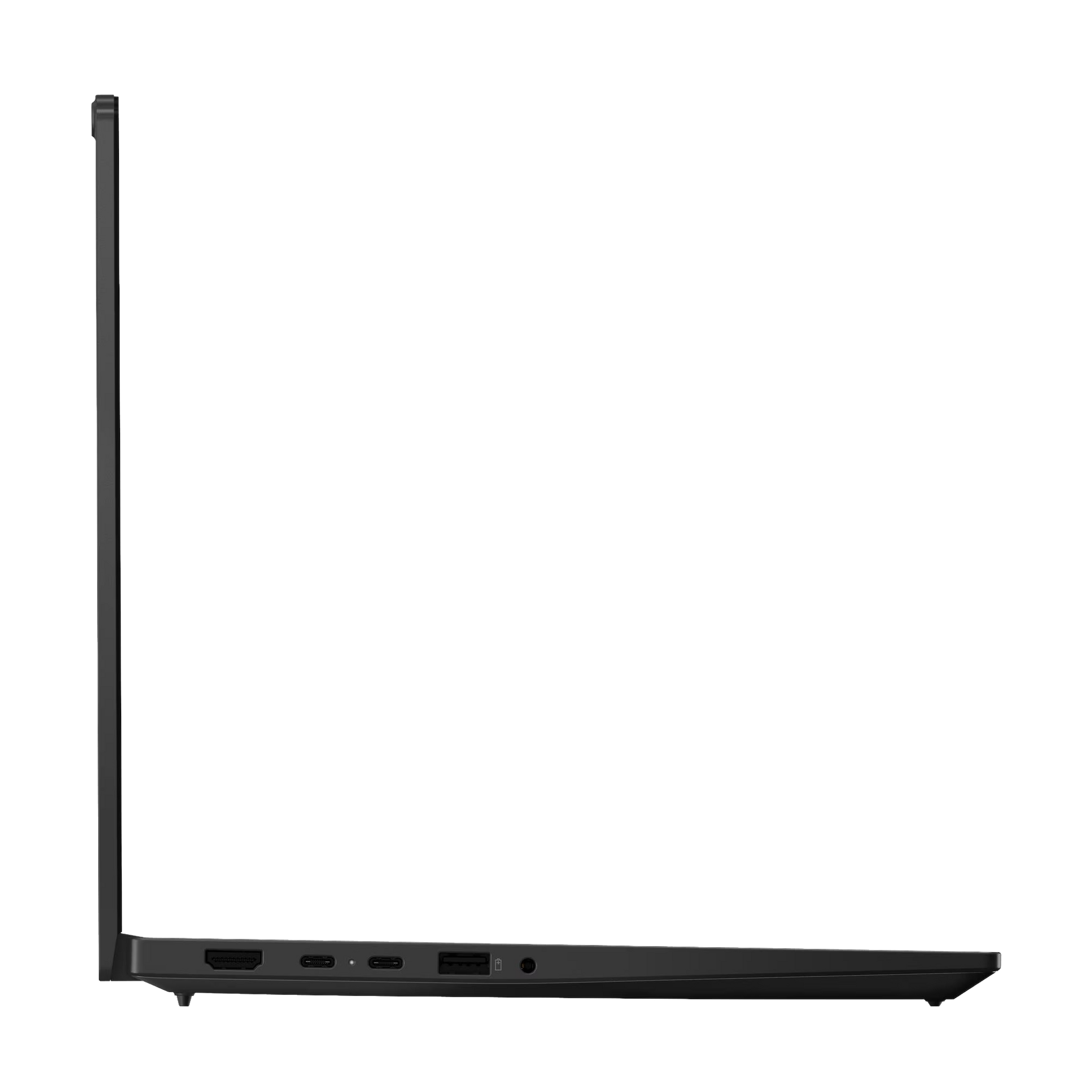

| Standard Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) |
| Standard Ports | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On |
| Standard Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with USB PD 3.1 and DisplayPort 1.4 |
| Standard Ports | 1x USB-C (USB4 40Gbps), with USB PD 3.1 and DisplayPort 1.4a |
| Standard Ports | 1x HDMI 2.1, up to 4K/60Hz |
| Standard Ports | 1x Headphone / microphone combo jack (3.5mm) |
| Standard Ports | 1x Ethernet (RJ-45) |
| Docking | Various docking solutions supported via USB-C. For more compatible docking solutions, please visit <a href="https://psref.lenovo.com/accessories/?category=Dockingsystem=ThinkPad%20E14%20Gen%207%20(AMD)" target="_blank"><u>Docking for ThinkPad E14 Gen 7 (AMD)</u></a> |
| SECURITY PRIVACY | |
| ThinkShield | ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit <a href="https://www.lenovo.com/us/en/software/thinkshield" target="_blank"><u>here</u></a> |
| Security Chip | Discrete TPM 2.0 Enabled |
| Physical Locks | Kensington Nano Security Slot, 2.5 x 6 mm |
| Smart Card Reader | None |
| Fingerprint Reader | Touch Style, Match-on-Chip, Integrated in Power Button |
| Other Security | Camera privacy shutter |
| Other Security | IR camera for Windows Hello (facial recognition) |
| MANAGEABILITY | |
| System Management | Non-DASH |
| SERVICE | |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 1Y Premier WHB (CPN) |
| ACCESSORIES | |
| Bundled Accessories | None |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR 9.0 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | EPEAT Gold Registered EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | ErP Lot 6/26 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | RoHS compliant EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | TCO Certified, generation 10 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Mil-Spec Test | MIL-STD-810H military test passed |
| Other Certifications | TÜV Rheinland Low Blue Light (Software Solution) |
