| PERFORMANCE | |
|---|---|
| Processor | Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache |
| AI PC Category | AI PC AI PCs have a NPU capable of 10+ TOPs to run the Copilot assistant by pressing the optional Microsoft Copilot key or using Win + C. |
| NPU | Integrated Intel AI Boost, up to 13 TOPS |
| Graphics | Integrated Intel Arc 140T GPU Intel Arc graphics only available on select H-series Intel Core Ultra processor powered systems with at least 16GB of system memory in a dual-channel configurations, otherwise it will function as Intel Graphics. |
| Chipset | Intel SoC Platform |
| Memory | 2x 16GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5600 The max memory is based on the technical readiness of the system. Available memory to sell would vary. |
| Storage | 1TB SSD M.2 2242 PCIe 4.0x4 NVMe |
| Storage Slot | Two M.2 2280 PCIe 4.0 x4 slots |
| Max Storage Support | Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 2TB each The system supports dual SSD via two M.2 slots, but Lenovo offers only one SSD configuration with a second slot for user self-expansion.
The max storage capacity is only technical readiness and may be different from current Lenovo storage offerings. |
| Card Reader | SD Card Reader |
| Audio Chip | High Definition (HD) Audio, Realtek ALC3287 codec |
| Speakers | Stereo speakers, 2W x2, Dolby Audio |
| Microphone | 2x, Array |
| Camera | FHD 1080p + IR Hybrid with Privacy Shutter |
| Battery | 45Wh |
| Power Adapter | 65W USB-C (3-pin) |
| Special Features | Modern Standby |
| DESIGN | |
| Display | 16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS. |
| Touchscreen | None |
| Screen-to-Body Ratio | 90% |
| Color Calibration | None |
| Pen | Pen Not Supported |
| Keyboard | Backlit, German |
| Touchpad | Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Dimensions (WxDxH) | 356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches) The system dimensions may vary depending on configurations. |
| Weight | Starting at 1.7 kg (3.75 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| Case Color | Arctic Grey |
| Case Material | Aluminium (Top), PC-ABS (Bottom) |
| Surface Treatment | Anodizing Sandblasting (Top), Texture (Bottom) |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | Office Trial + Lenovo AI Now |
| CONNECTIVITY | |
| WLAN + Bluetooth | Wi-Fi 6E, 802.11ax 2x2 + BT5.3 |
| WWAN | WWAN Not Supported |
| Ethernet | 100/1000M (RJ-45) |

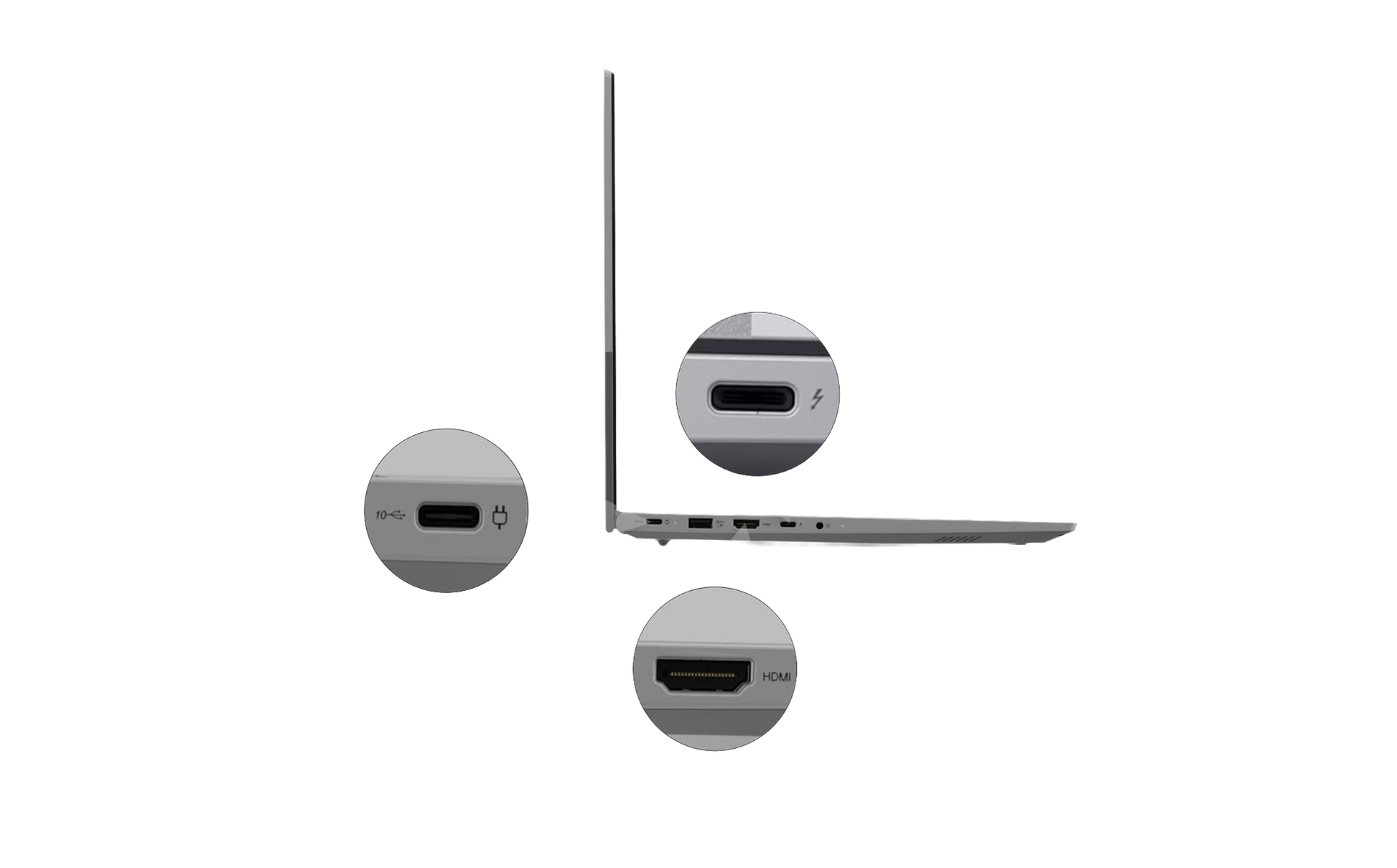

| Standard Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) |
| Standard Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On |
| Standard Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 45-65W and DisplayPort 1.4 |
| Standard Ports | 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 45-65W and DisplayPort 2.1 |
| Standard Ports | 1x HDMI 2.1, up to 4K/60Hz |
| Standard Ports | 1x Headphone / microphone combo jack (3.5mm) |
| Standard Ports | 1x Ethernet (RJ-45) |
| Standard Ports | 1x SD card reader |
| Docking | Various docking solutions supported via Thunderbolt or USB-C. For more compatible docking solutions, please visit <a href="https://psref.lenovo.com/accessories/?category=Dockingsystem=21SK" target="_blank"><u>Docking for ThinkBook 16 G8 IAL</u></a> |
| SECURITY PRIVACY | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Physical Locks | Kensington Nano Security Slot, 2.5 x 6 mm |
| Fingerprint Reader | Touch Style, Match-on-Chip, Integrated in Power Button |
| Other Security | Camera privacy shutter |
| Other Security | IR camera for Windows Hello (facial recognition) |
| MANAGEABILITY | |
| System Management | Non-vPro |
| SERVICE | |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 1Y Premier WHB (CPN) |
| ACCESSORIES | |
| Bundled Accessories | None |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR 9.0 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | EPEAT Gold Registered EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | ErP Lot 6/26 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | RoHS compliant EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | TCO Certified, generation 10 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Mil-Spec Test | MIL-STD-810H military test passed |
| Other Certifications | TÜV Rheinland Low Blue Light (Software Solution) |
