| PERFORMANCE | |
|---|---|
| Processor | Intel Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB Intel Smart Cache |
| AI PC Category | AI PC AI PCs have a NPU capable of 10+ TOPs to run the Copilot assistant by pressing the optional Microsoft Copilot key or using Win + C. |

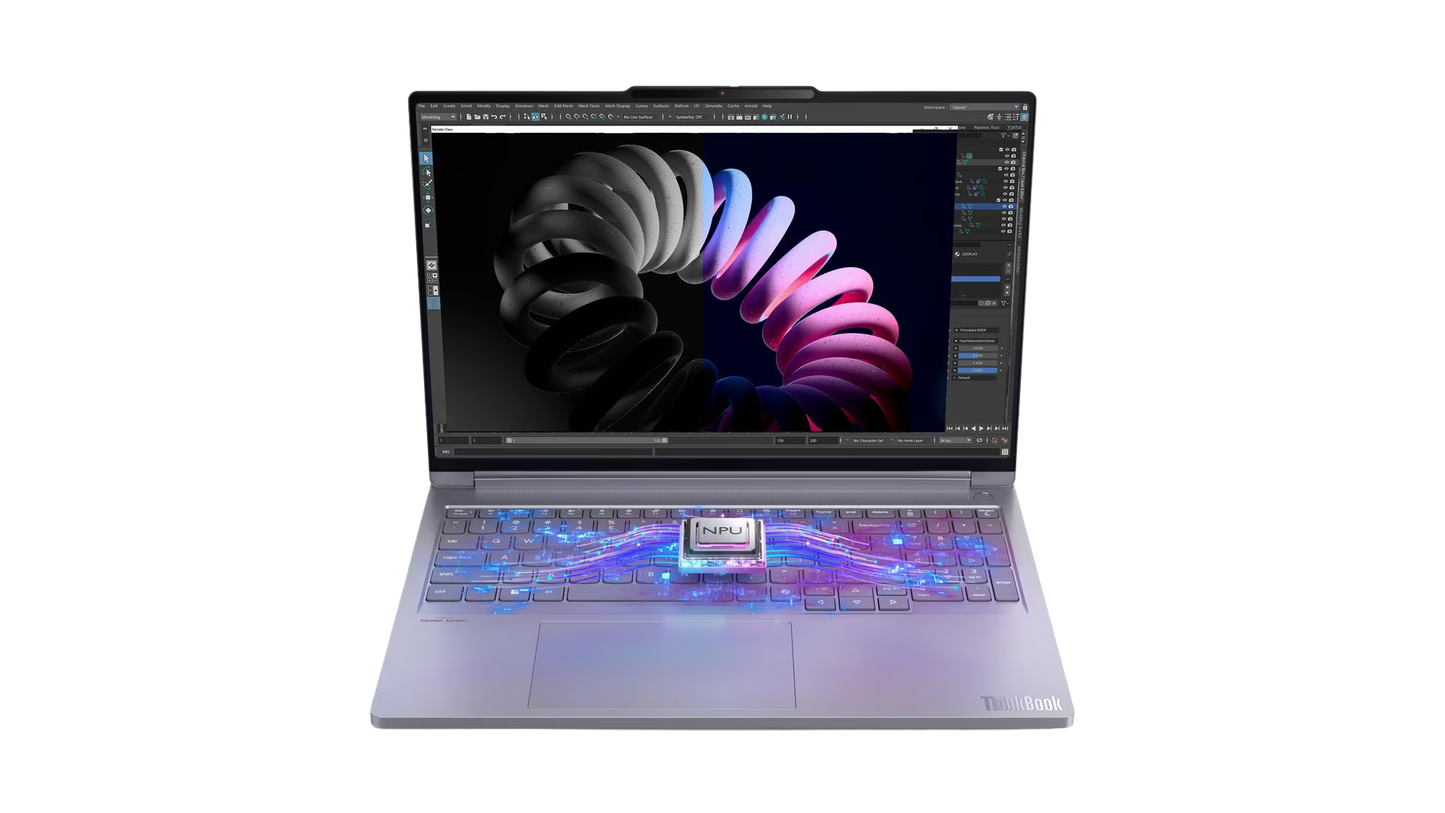

| NPU | Integrated Intel AI Boost up to 13 TOPS |
| Graphics | NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS |
| Chipset | Intel HM870 Chipset |
| Memory | 2x 16GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM / CSODIMM slots, dual-channel capable |
| Max Memory | Up to 64GB (2x 32GB SODIMM) DDR5-5600 |
| Storage | 1TB SSD M.2 2242 PCIe 4.0x4 NVMe |
| Storage Slot | Two M.2 2280 PCIe 5.0 x4 slots |
| Max Storage Support | Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 2TB each The system supports dual SSD via two M.2 slots, but Lenovo only offers configurations with a single SSD, reserving the other slot for an optional discrete NPU card, or for user self-expansion.
The storage capacity supported is based on the test results with current Lenovo storage offerings. |
| Card Reader | SD Card Reader |
| Audio Chip | High Definition (HD) Audio, Realtek ALC3306-CG codec |
| Speakers | Stereo speakers, 2W x2 woofers and 2W x2 tweeters, Dolby Atmos, sound by harman/kardon, Smart Amplifier (AMP) |
| Microphone | 2x, Array |
| Camera | FHD 1080p + IR Hybrid with Privacy Shutter |
| Battery | 85Wh |
| Power Adapter | 300W Slim Tip (3-pin) |
| Special Features | AI Chip: LA3 |
| Special Features | Modern Standby |
| DESIGN | |
| Display | 16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR 400, Dolby Vision, G-SYNC, Eyesafe, X-Rite IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS. |
| Touchscreen | None |
| Screen-to-Body Ratio | 93% |

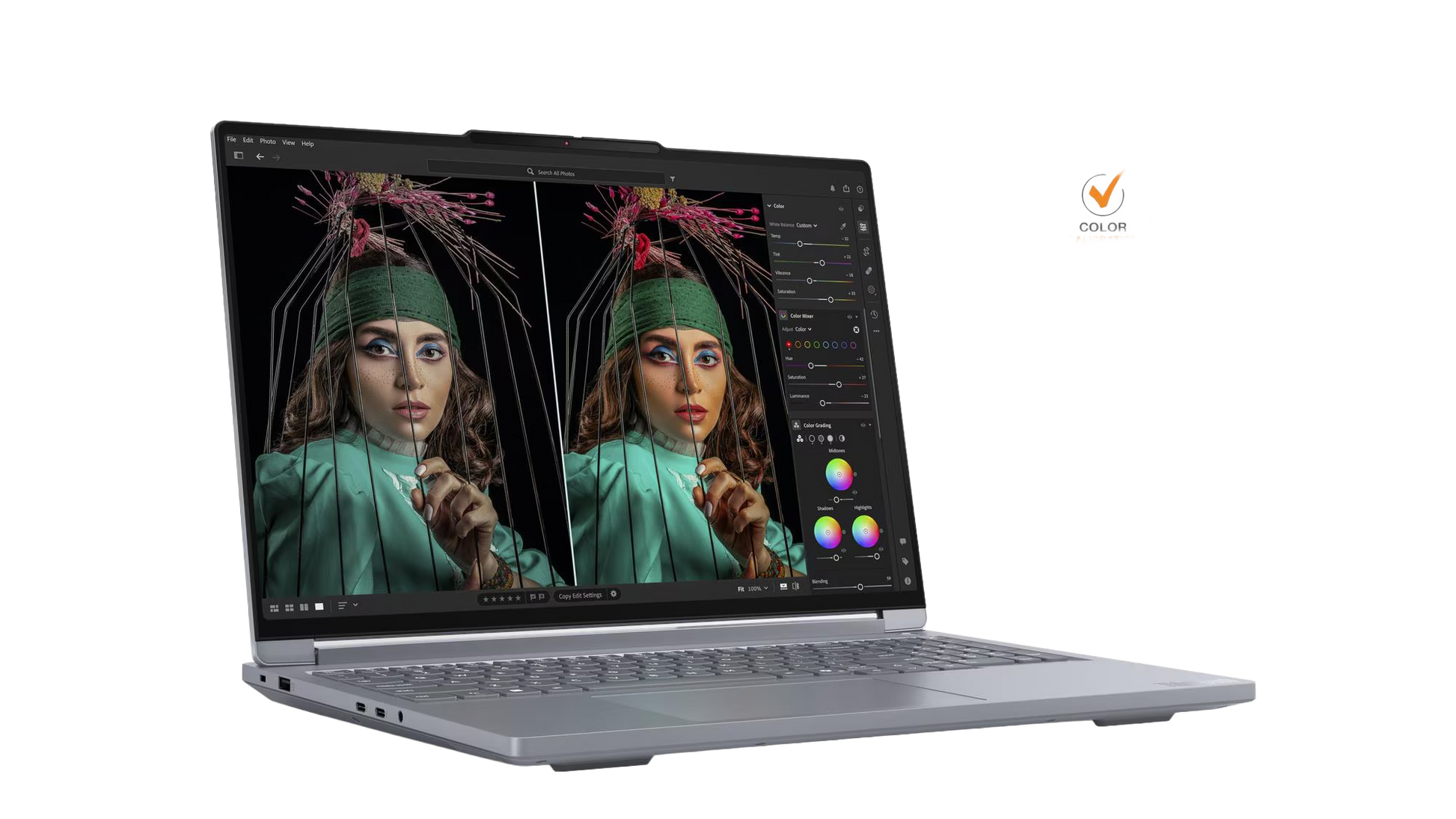

| Color Calibration | X-Rite Factory Color Calibration |
| Pen | Pen Not Supported |
| Keyboard | Backlit, German |
| Touchpad | Touchpad |
| Dimensions (WxDxH) | 354.6 x 256.2 x 17.9 mm (13.96 x 10.09 x 0.70 inches) The system dimensions may vary depending on configurations. |
| Weight | Starting at 2.1 kg (4.63 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| Case Color | Luna Grey |
| Case Material | Aluminium (Top), Aluminium (Bottom) |
| Surface Treatment | Anodizing Sandblasting |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | Office Trial + Lenovo AI Now |
| CONNECTIVITY | |
| WLAN + Bluetooth | Wi-Fi 7, 802.11be 2x2 + BT5.4 |
| WWAN | WWAN Not Supported |
| Ethernet | No Onboard Ethernet |

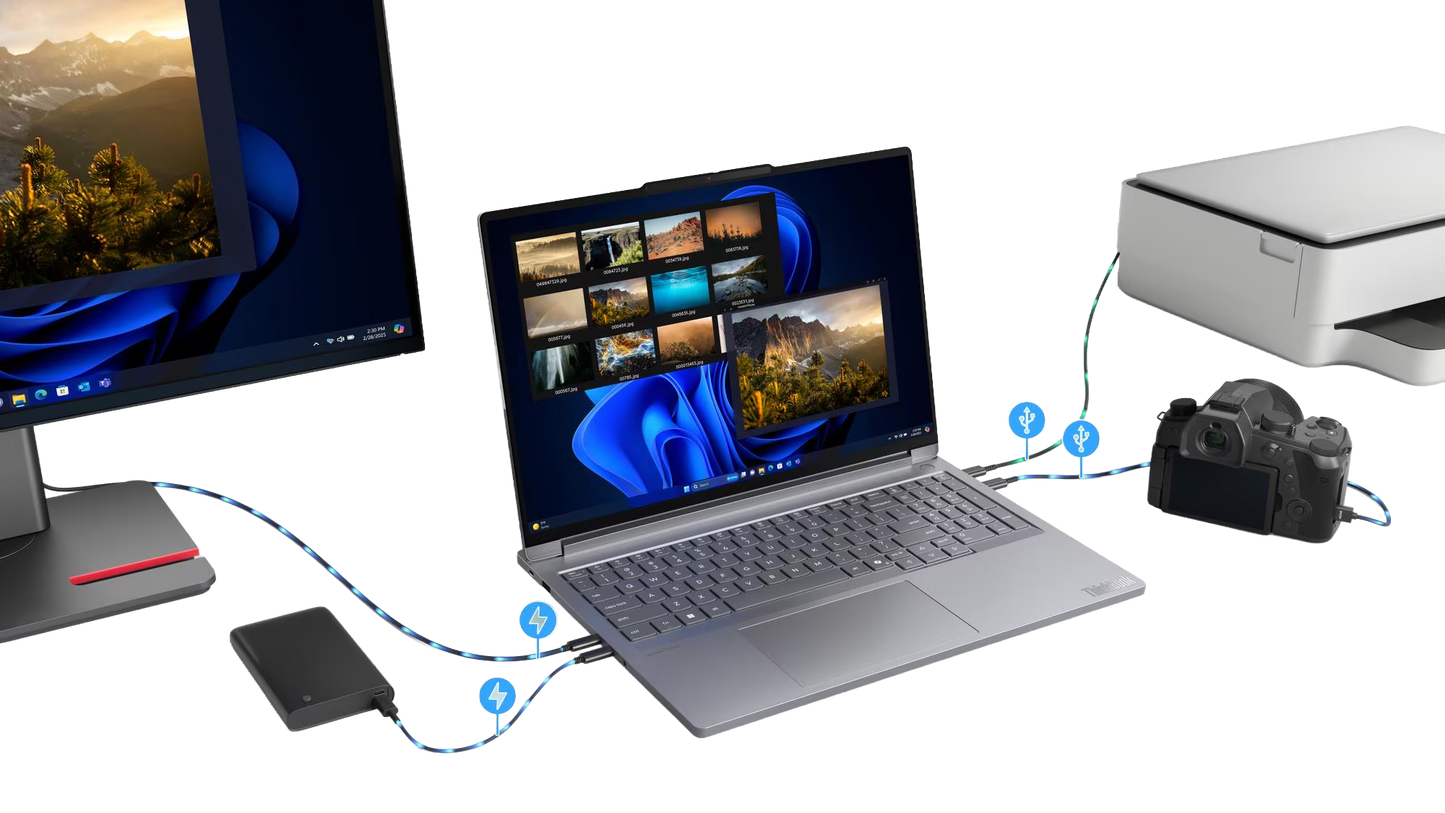

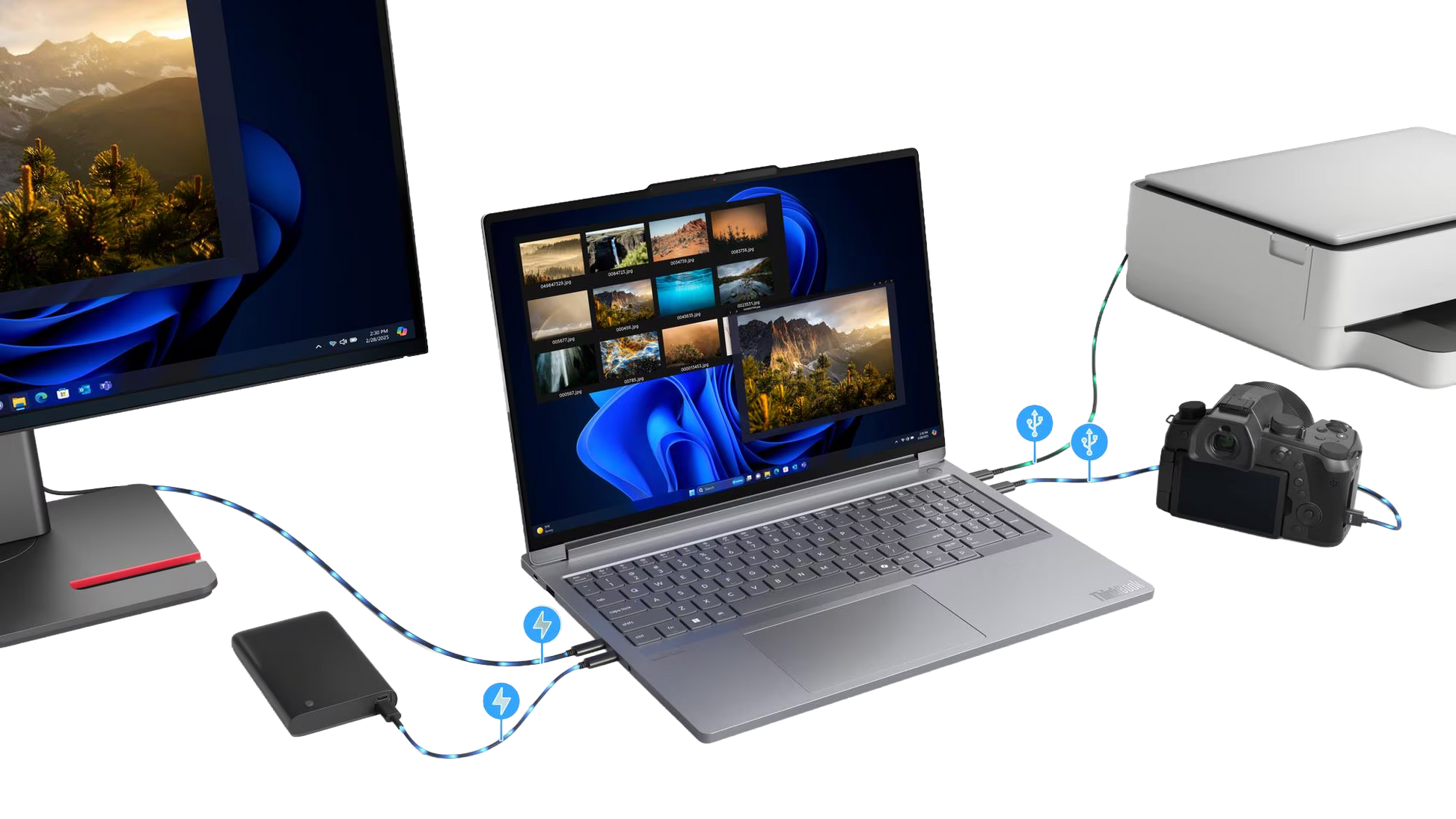

| Standard Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) |
| Standard Ports | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On |
| Standard Ports | 2x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 3.0 and DisplayPort 2.1 |
| Standard Ports | 1x HDMI 2.1, up to 8K/60Hz |
| Standard Ports | 1x Headphone / microphone combo jack (3.5mm) |
| Standard Ports | 1x SD card reader |
| Standard Ports | 1x Slim tip power connector |

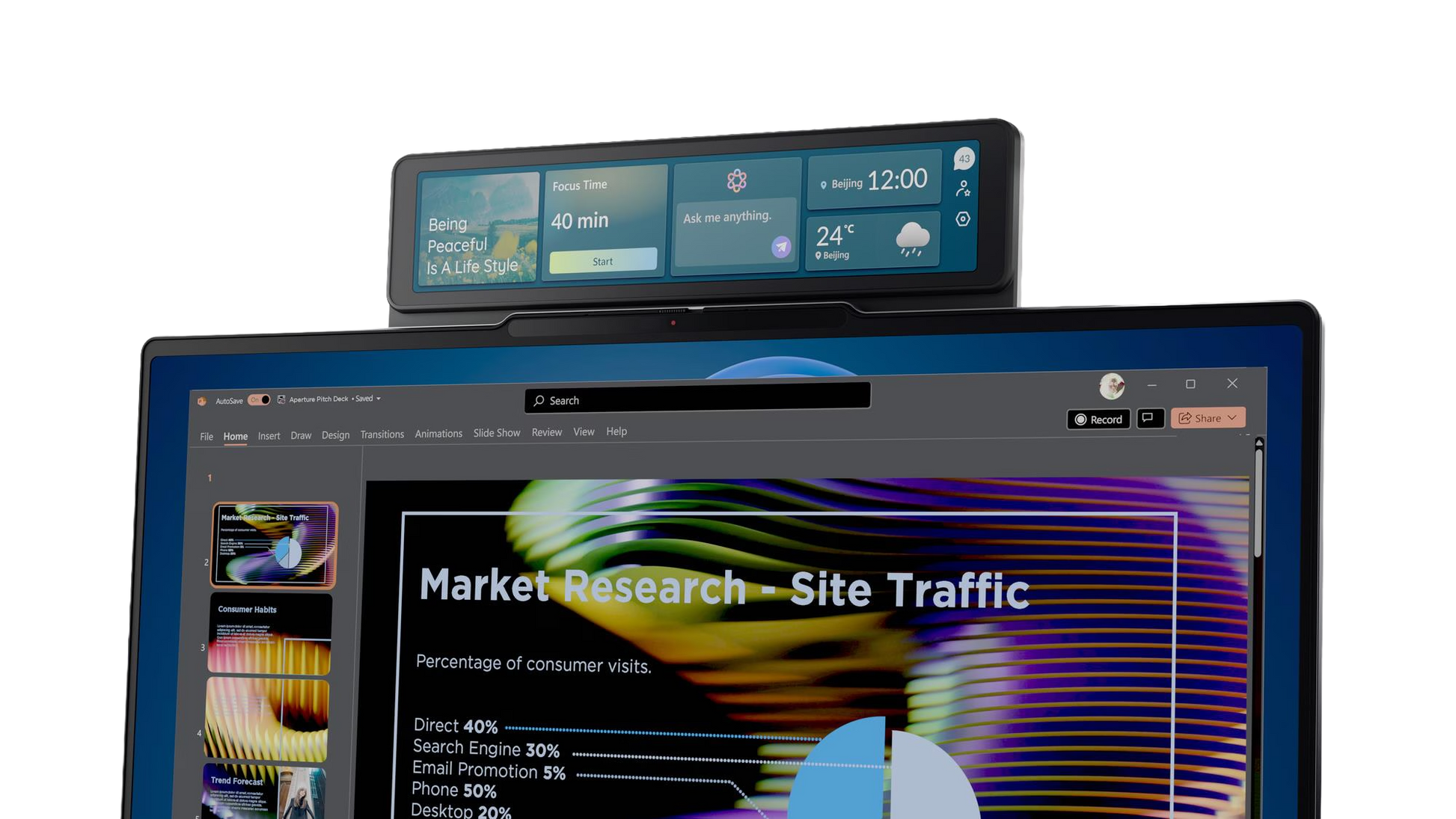

| Standard Ports | 1x Magic Bay (pogo pin connector) |
| Docking | Various docking solutions supported via Thunderbolt or USB-C. For more compatible docking solutions, please visit <a href="https://psref.lenovo.com/accessories/?category=Dockingsystem=21R0" target="_blank"><u>Docking for ThinkBook 16p G6 IAX</u></a> |
| SECURITY PRIVACY | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Physical Locks | Kensington Nano Security Slot, 2.5 x 6 mm |
| Fingerprint Reader | Touch Style, Match-on-Chip, Integrated in Power Button |
| Other Security | Camera privacy shutter |
| Other Security | IR camera for Windows Hello (facial recognition) |
| SERVICE | |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 1Y Premier WHB (CPN) |
| ACCESSORIES | |
| Bundled Accessories | None |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR 9.0 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | EPEAT Gold Registered EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | ErP Lot 6/26 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | RoHS compliant EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | TCO Certified, generation 10 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Mil-Spec Test | MIL-STD-810H military test passed |
| Other Certifications | Eyesafe Certified 2.0 |
| Other Certifications | TÜV Rheinland Low Blue Light (Hardware Solution) |
