| PERFORMANCE | |
|---|---|
| Processor | Intel Core Ultra 5 228V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB Intel Smart Cache |
| AI PC Category | Copilot+ PC Copilot+ PCs have at least 16GB RAM, 256GB storage, and a NPU that runs 40+ TOPs to run the latest AI tools build-in latest Windows 11 to accelerate productivity and creativity. |
| NPU | Integrated Intel AI Boost, up to 40 TOPS |
| Graphics | Integrated Intel Arc Graphics 130V |
| Chipset | Intel SoC Platform |
| Memory | 32GB Soldered LPDDR5x-8533, MoP Memory |
| Memory Slots | Memory soldered to systemboard, no slots, dual-channel |
| Max Memory | 32GB soldered memory, not upgradable |
| Storage | 512GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0 |
| Storage Slot | One M.2 2242 PCIe 4.0 x4 slot |
| Max Storage Support | One drive, up to 2TB M.2 2242 SSD The storage capacity supported is based on the test results with current Lenovo storage offerings. |
| Card Reader | None |
| Audio Chip | SoundWire, Cirrus Logic CS42L43 codec |
| Speakers | Stereo speakers, 2W x2, Dolby Atmos |
| Microphone | 2x, Array |
| Camera | FHD 1080p + IR Discrete with E-shutter |
| Battery | 55Wh |
| Power Adapter | 65W USB-C Slim GaN (3-pin) |
| DESIGN | |
| Display | 14" WUXGA (1920x1200) OLED 400nits Anti-glare, 100% DCI-P3, 60Hz, DisplayHDR True Black 500, Dolby Vision |
| Touchscreen | None |
| Screen-to-Body Ratio | 90.9% |
| Pen | Pen Not Supported |
| Keyboard | Backlit, German |
| Touchpad | Buttonless glass surface multi-touch Haptic Touchpad, supports Precision TouchPad (PTP), 80 x 130 mm (3.15 x 5.12 inches) |

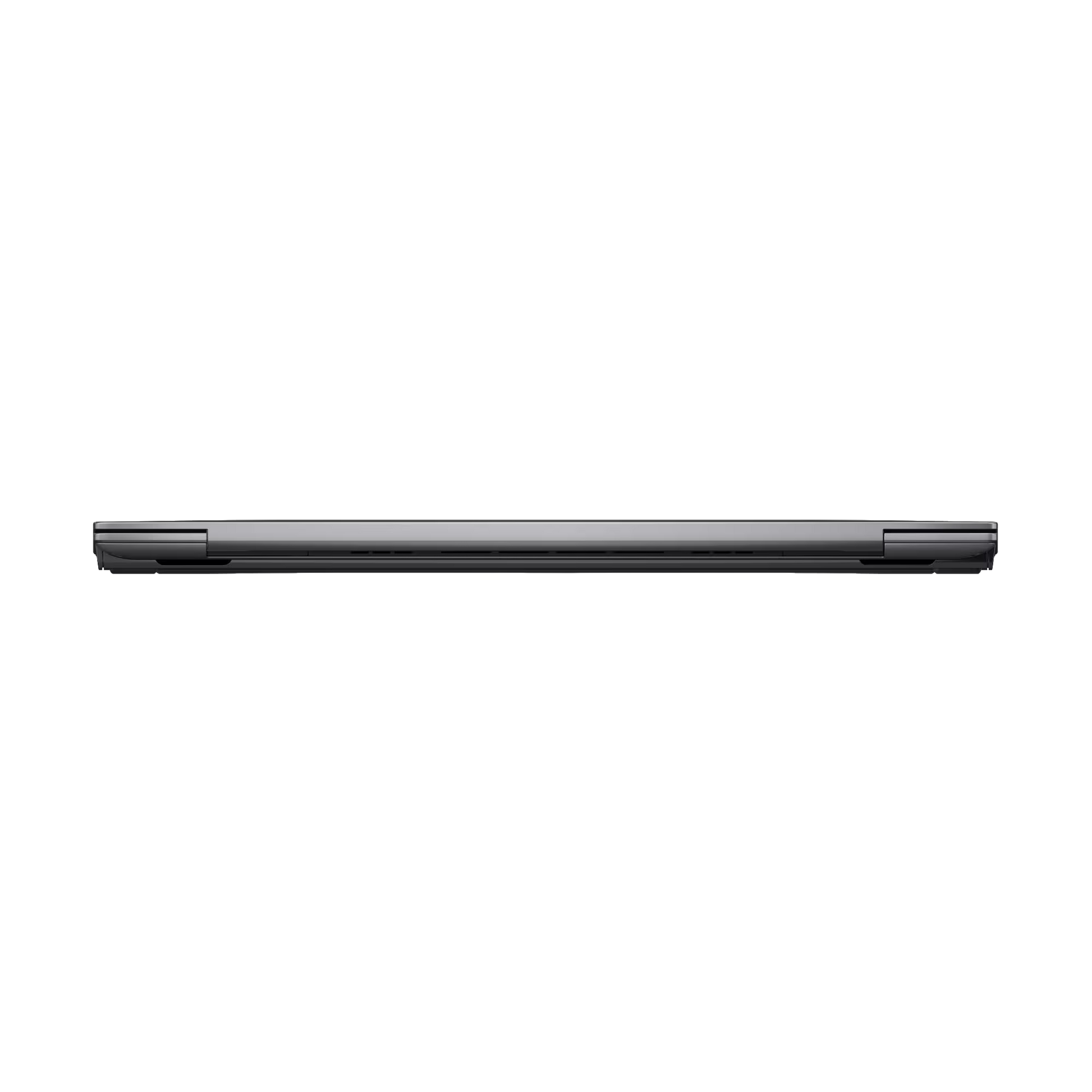

| Dimensions (WxDxH) | 311.8 x 212.3 x 6.7-17.18 mm (12.28 x 8.36 x 0.26-0.68 inches) The system dimensions may vary depending on configurations. |
| Weight | Starting at 1.21 kg (2.66 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| Case Color | Grey |
| Case Material | Aluminium (Top), Aluminium (Bottom) |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | Intel Connectivity Performance Suite |
| CONNECTIVITY | |
| WLAN + Bluetooth | Intel Wi-Fi 7 BE201, 802.11be 2x2 + BT5.4 |
| WWAN | WWAN Not Supported |
| SIM Card | None |
| Ethernet | No Onboard Ethernet Ethernet support via optional Lenovo USB-C to Ethernet Adapter. |
| NFC | None |

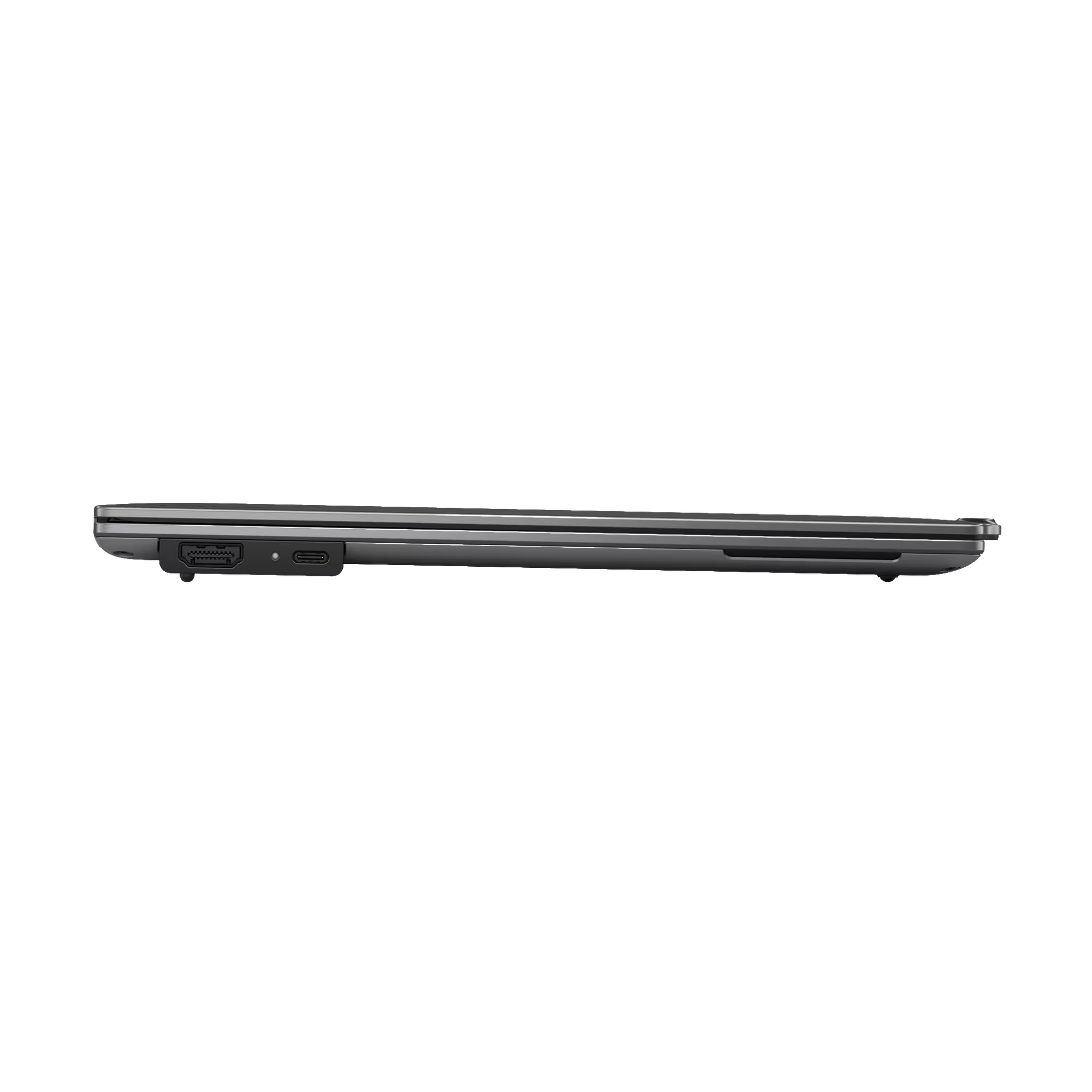

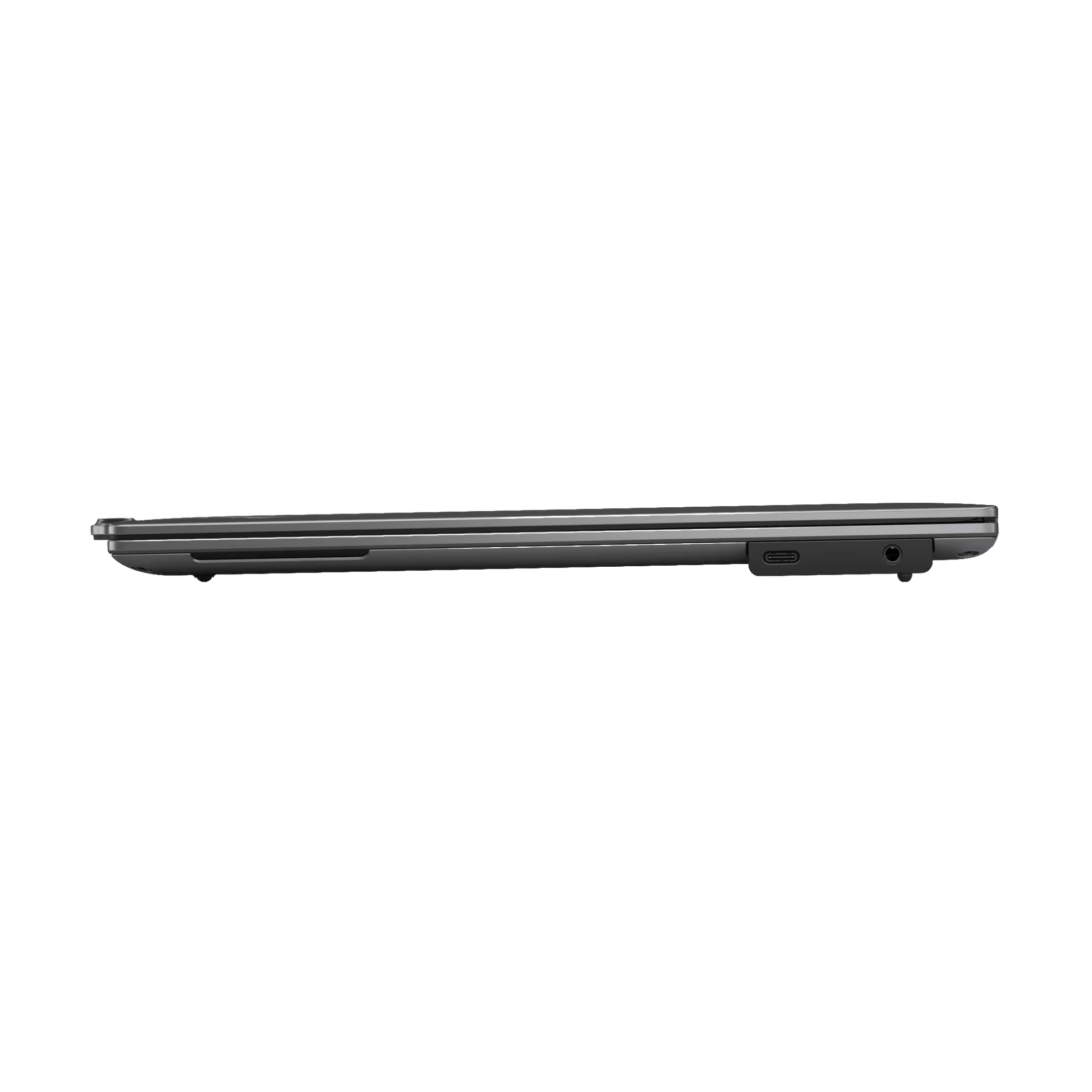

| Standard Ports | 2x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 3.0 and DisplayPort 2.1 |
| Standard Ports | 1x HDMI 2.1, up to 4K/60Hz |
| Standard Ports | 1x Headphone / microphone combo jack (3.5mm) |
| Optional Ports (configured) | None |
| Docking | Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit <a href="https://psref.lenovo.com/accessories/?category=Dockingsystem=ThinkPad%20X9-14%20Gen%201%20Aura%20Edition" target="_blank"><u>Docking for ThinkPad X9-14 Gen 1 Aura Edition</u></a> |
| SECURITY PRIVACY | |
| ThinkShield | ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit <a href="https://www.lenovo.com/us/en/software/thinkshield" target="_blank"><u>here</u></a> |
| Security Chip | Discrete TPM 2.0 Enabled |
| Smart Card Reader | None |
| Fingerprint Reader | Touch Style, Match-on-Chip, Integrated in Power Button |
| Other Security | Ultrasonic Human Presence Detection (WUXGA models) |
| Other Security | E-shutter |
| Other Security | IR camera for Windows Hello (facial recognition) |
| MANAGEABILITY | |
| System Management | Non-vPro |
| SERVICE | |
| Base Warranty | 3-year, Courier or Carry-in |
| Included Upgrade | 1Y Premier WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects) |
| ACCESSORIES | |
| Bundled Accessories | None |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR 9.0 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | EPEAT Gold Registered EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | ErP Lot 6/26 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | RoHS compliant EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Green Certifications | TCO Certified, generation 10 EPEAT is registered where applicable, please visit <a href="https://www.epeat.net/" target="_blank"><u>epeat.net</u></a> for registration status by country. |
| Mil-Spec Test | MIL-STD-810H military test passed |
| Other Certifications | Eyesafe Certified 2.0 |
| Other Certifications | Intel Evo Platform |
