| PERFORMANCE | |
|---|---|
| Processor | Intel Core i3-1315U, 6C (2P + 4E) / 8T, P-core up to 4.5GHz, E-core up to 3.3GHz, 10MB Intel Smart Cache |
| Graphics | Integrated Intel UHD Graphics |
| Chipset | Intel SoC Platform |
| Memory | 1x 8GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5600 The max memory is based on the test results with current Lenovo memory offerings. |
| Storage | 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0 |
| Max Storage Support | Up to two drives, 2x M.2 SSD
• M.2 SSD up to 1TB each The max capacity of each disk type is based on the test results with current Lenovo storage offerings. |
| RAID Preset | None |
| Card Reader | No card reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC256 codec |
| Speakers | 2Wx1 |
| Camera | No camera |
| Microphone | No microphone |
| Power Supply | 65W 89% Adapter When work with TIO monitor, an appropriate power adapter is needed. Customer may need to:
? Order a Tiny for TIO MT (13C6, 13C7) models
? Or for Intel Core 5/7 models order an additional 135W power adapter, for Intel Core i3 models order an additional 90W power adapter. If original power adapter is less than 135W (Core 5/7 models) or 90W (i3 models).
For detailed information, please refer to <a href="https://psrefstuff.lenovo.com/syspool/ThinkCentre_neo_50q_Gen_5_Adapter_Matrix.pdf" target="_blank"><u>ThinkCentre neo 50q Gen 5 Adapter Matrix</u></a> |
| DESIGN | |
| Keyboard | USB, Calliope, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Optional Bay | None |
| Expansion Slots | Three M.2 slots (one for WLAN, two for SSD) |
| Case Color | Black |
| Stand | None |
| Adapter Cage | None |
| Toolless Chassis Screw | Toolless Chassis Screw |
| Mounting | None |
| IO Box | No IO box |
| Pen | Pen Not Supported |
| Form Factor | Tiny (1L) |
| Dimensions (WxDxH) | Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches) The system dimensions may vary depending on configurations. |
| Dimensions (WxDxH) | Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) The system dimensions may vary depending on configurations. |
| Weight | Around 1.13 kg (2.49 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| WLAN + Bluetooth | Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3 |
| WWAN | WWAN Not Supported |
| Ethernet | Integrated 100/1000M |

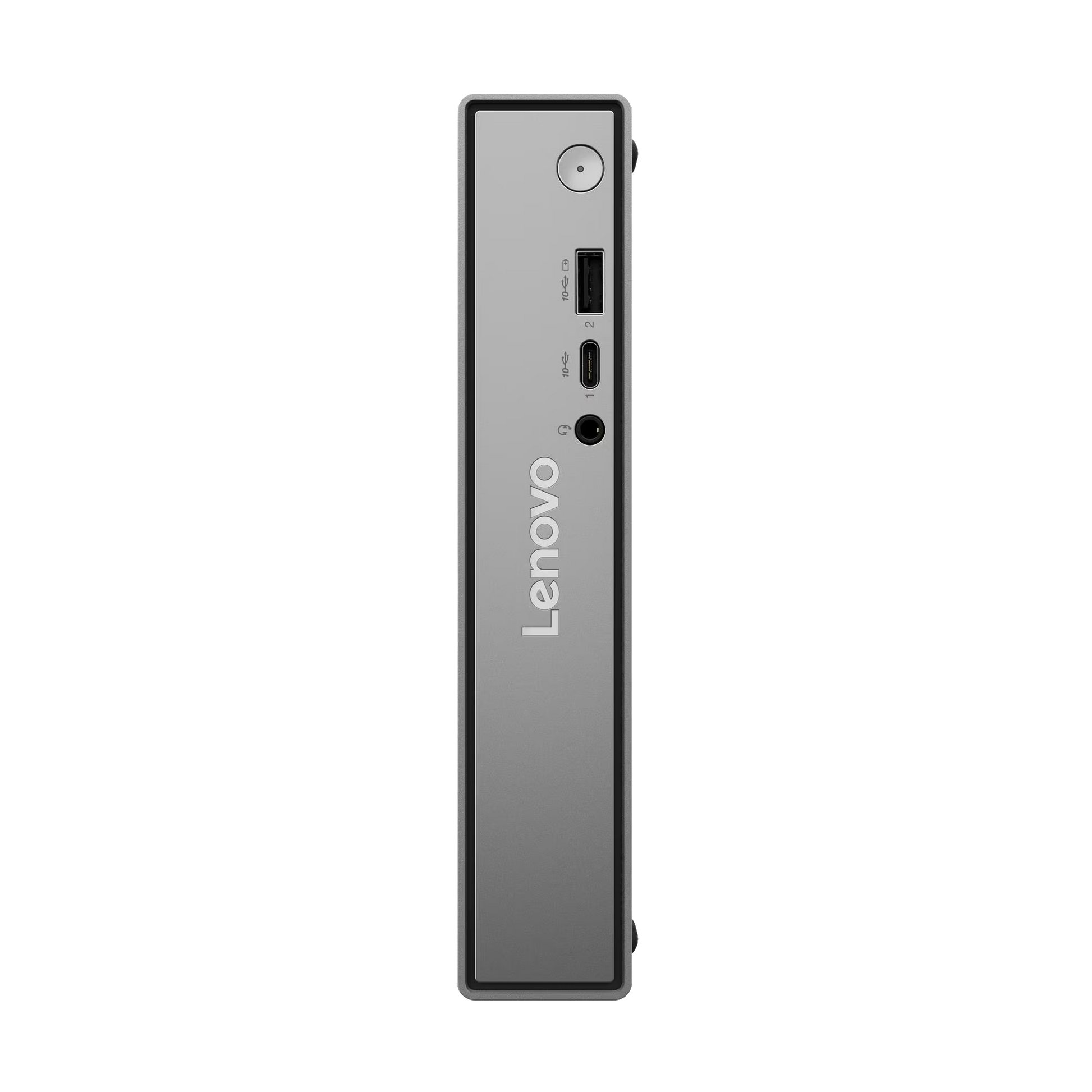

| Front Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging |
| Front Ports | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) |

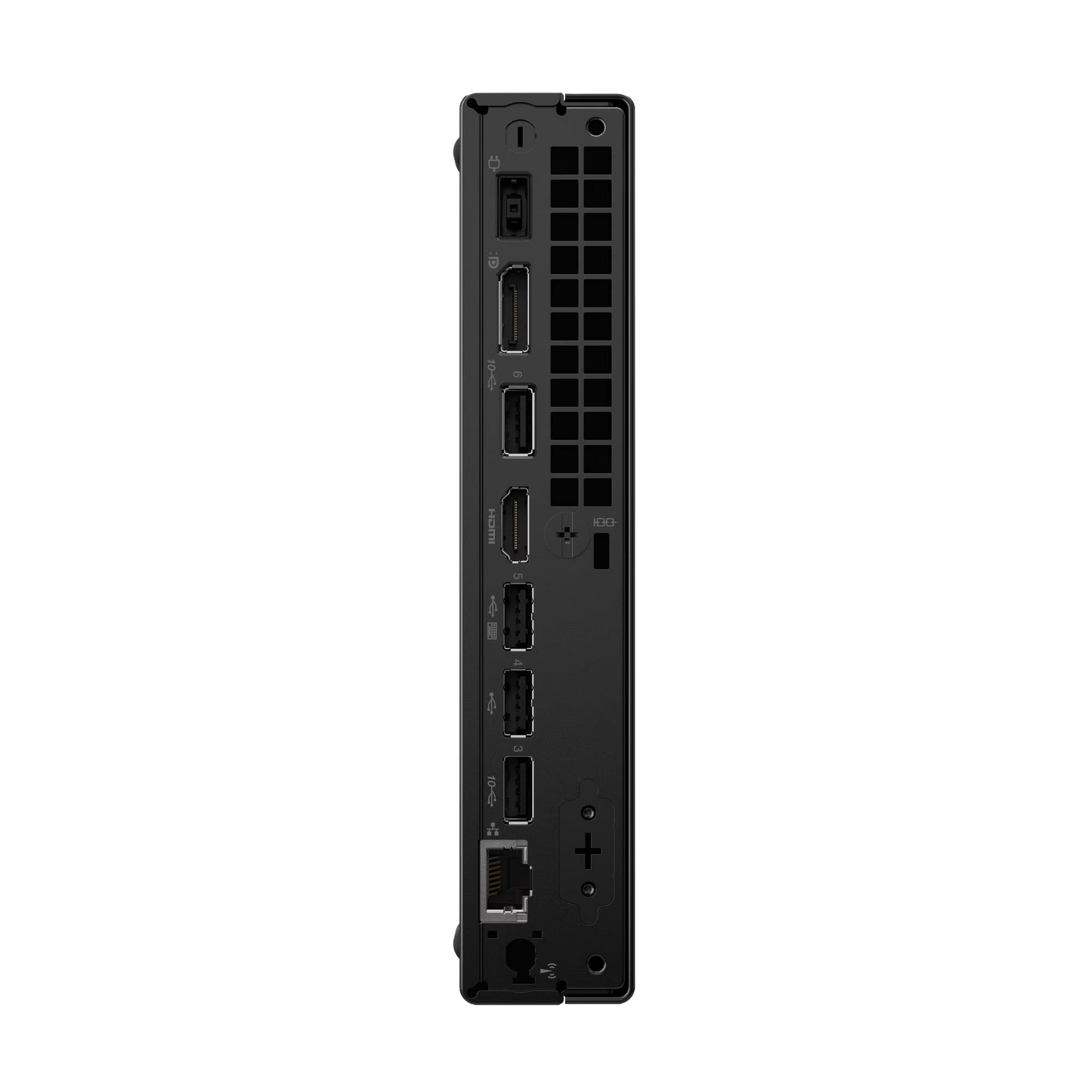

| Rear Ports | 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On |
| Rear Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) |
| Rear Ports | 1x HDMI 2.1 TMDS |
| Rear Ports | 1x DisplayPort 1.4b |
| Rear Ports | 1x Ethernet (GbE RJ-45) |
| Rear Ports | 1x Power connector |
| Optional Rear Ports (configured) | None |
| Monitor Cable | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Chassis Intrusion Switch | Chassis Intrusion Switch Chassis intrusion switch is hardware ready function and needs to be special bid or manually enabled in BIOS. |
| MANAGEABILITY | |
| System Management | Non-vPro |
| SERVICE | |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 1Y Onsite from 1Y Depot WHB (CPN) |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR 9.0 |
| Green Certifications | RoHS compliant |
| Green Certifications | TCO Certified, generation 10 |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | None |
| ACCESSORIES | |
| Bundled Accessories | None |
