| PERFORMANCE | |
|---|---|
| Processor | Intel Core Ultra 5 225, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache |
| AI PC Category | AI PC AI PCs have a NPU capable of 10+ TOPs to run the Copilot assistant by pressing the optional Microsoft Copilot key or using Win + C. |
| NPU | Integrated Intel AI Boost, up to 13 TOPS |
| Graphics | Integrated Intel Graphics |
| Chipset | Intel Q870 Chipset |
| Memory | 1x 16GB UDIMM DDR5-5600 |
| Memory Slots | Four DDR5 UDIMM slots, dual-channel capable |
| Max Memory | Up to 128GB DDR5 The max memory is based on the test results with current Lenovo memory offerings. |
| Storage | 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0 |
| Max Storage Support | Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD
• 3.5" HDD up to 2TB
• 2.5" HDD bay is only for customer self upgrade
• M.2 SSD up to 2TB each The max capacity of each disk type is based on the test results with current Lenovo storage offerings.
2.5'' HDD bay is optional part, only for customer self upgrade purpose and the hard drive is sold separately. |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC623-CG codec |
| Speakers | 2Wx1 |
| Power Supply | 260W 90% |
| DESIGN | |
| Keyboard | USB Traditional Keyboard, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Optional Bay | 2nd M.2 Bracket |
| Expansion Slots | One PCIe 4.0 x16, full-height, length ≤ 209mm, height ≤ 117.5mm |
| Expansion Slots | Two PCIe 3.0 x1, full-height, length ≤ 185mm, height ≤ 100mm |
| Expansion Slots | Three M.2 slots (one for WLAN, two for SSD) |
| Case Color | Black |
| Stand | No stand |
| Dust Filter | None |
| Pen | Pen Not Supported |

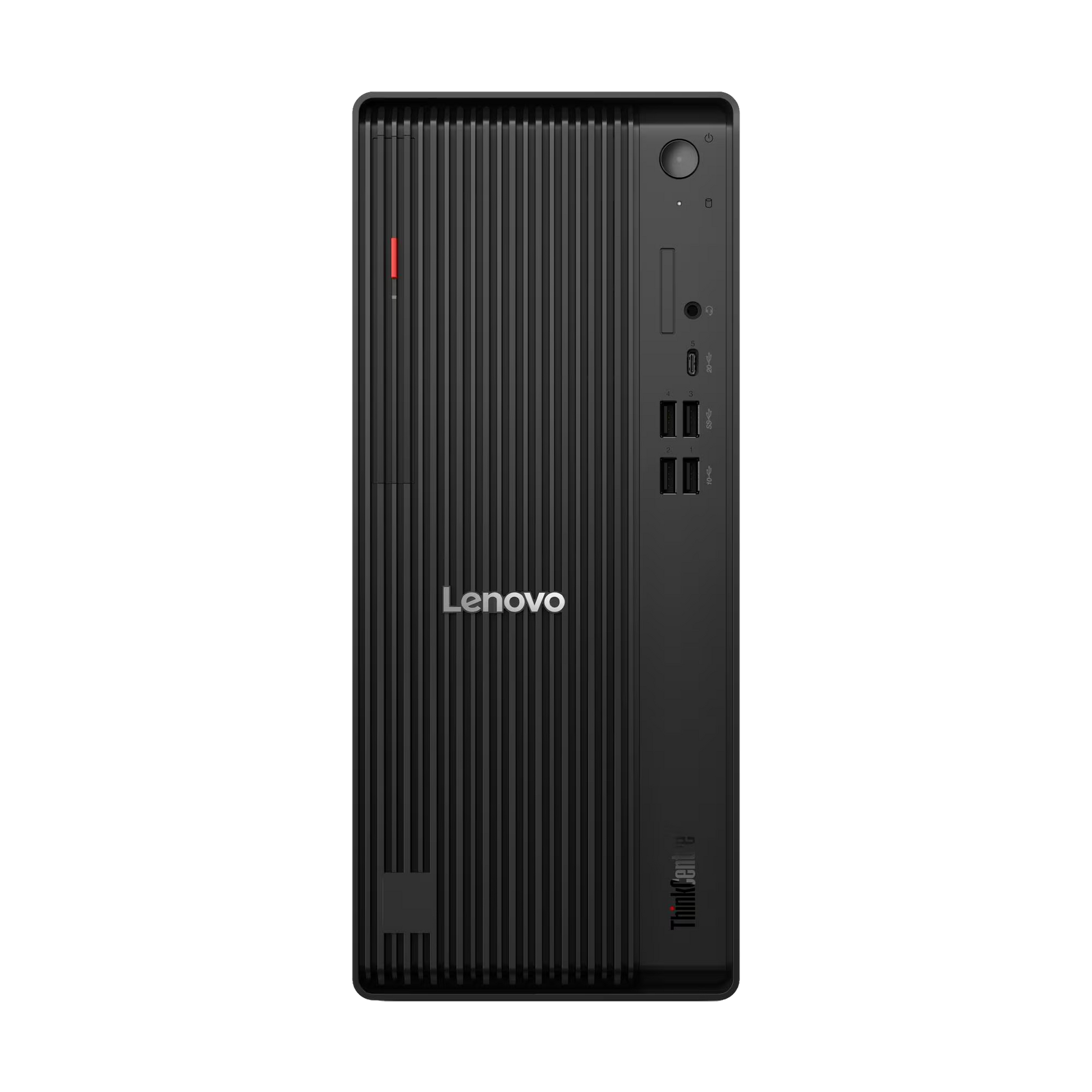

| Form Factor | Tower (13.6L) |
| Dimensions (WxDxH) | 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches) The system dimensions may vary depending on configurations. |
| Weight | 5.7 kg (12.6 lbs, maximum configuration) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| WLAN + Bluetooth | None |
| WWAN | WWAN Not Supported |
| Ethernet | Integrated 100/1000M |

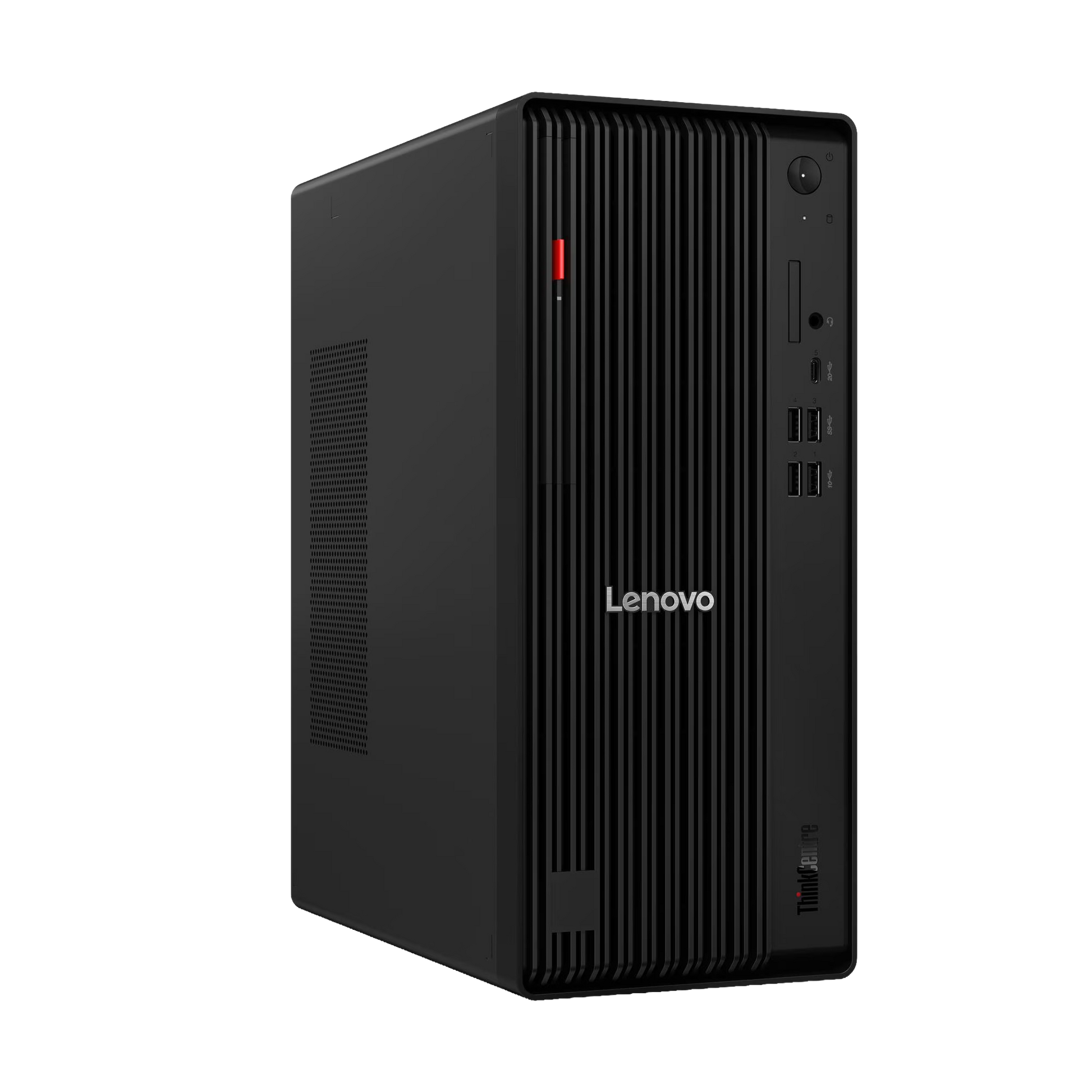

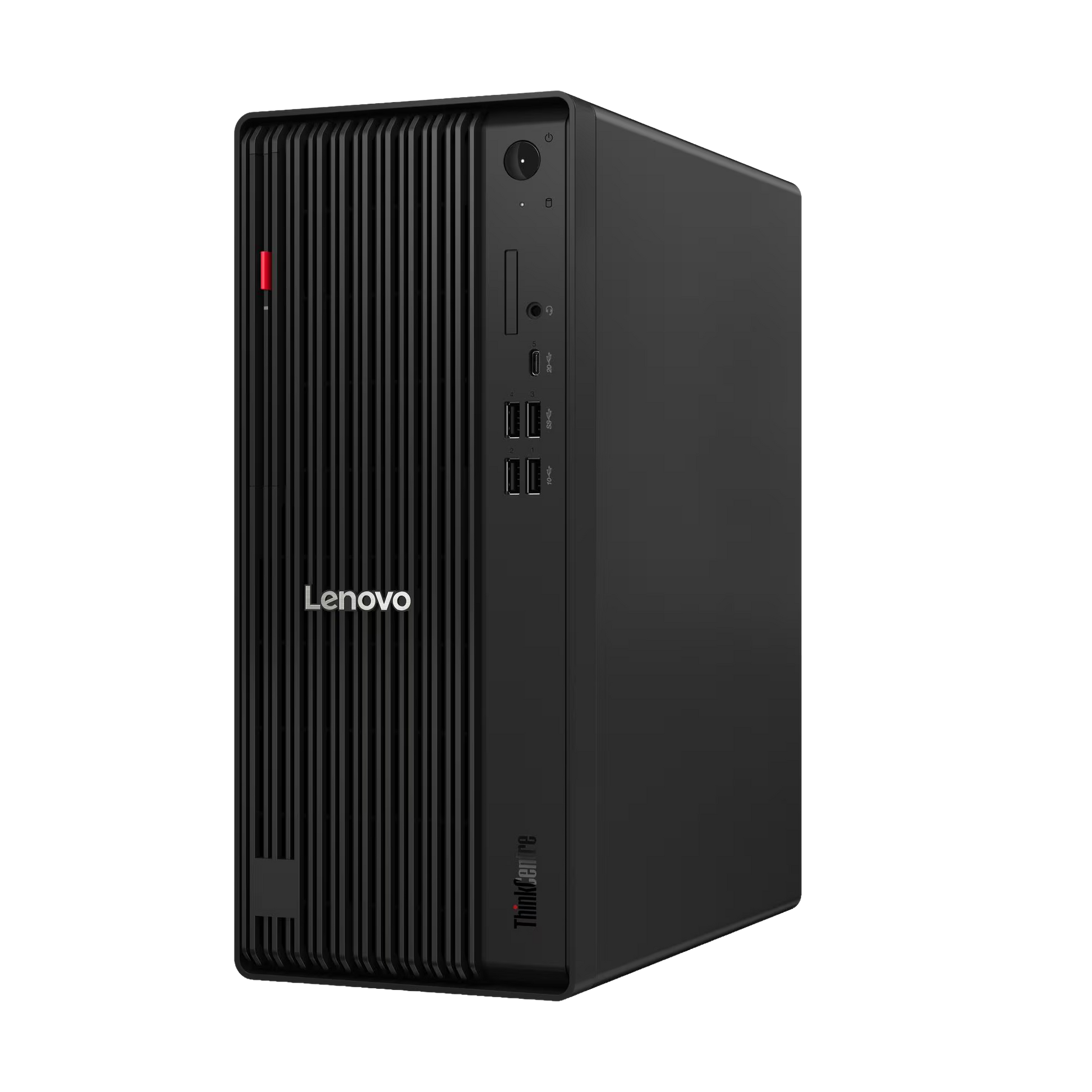

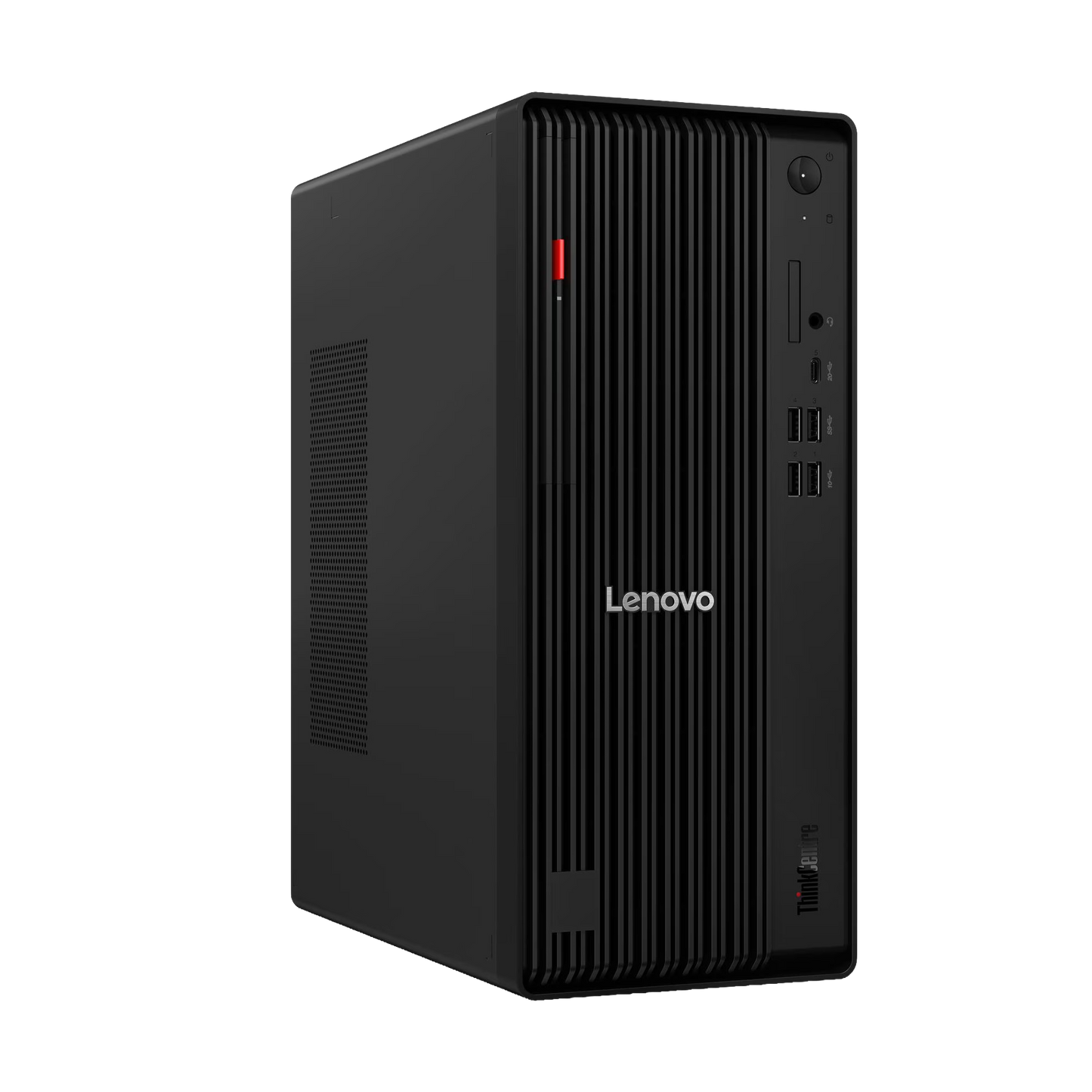

| Front Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging |
| Front Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) |
| Front Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) |

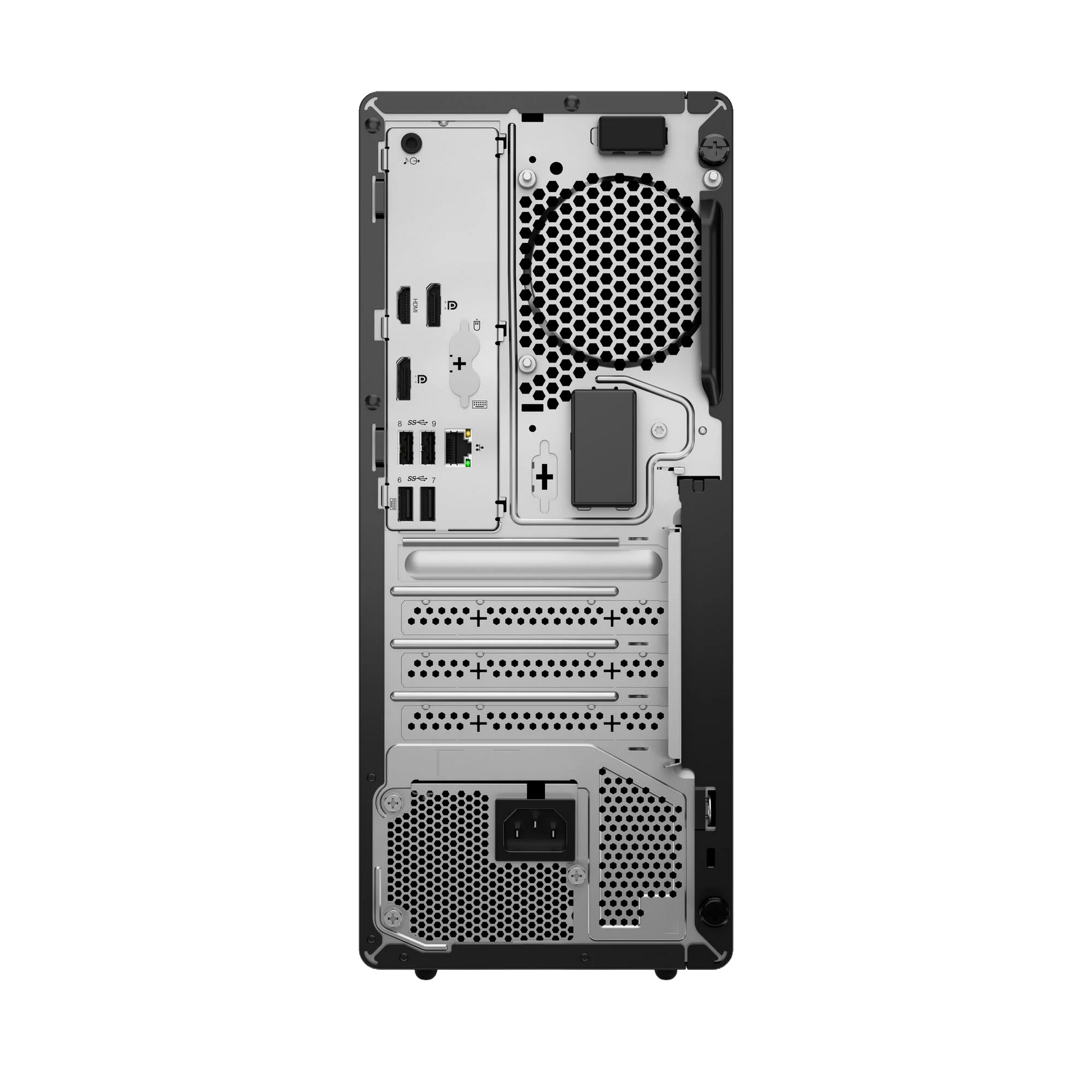

| Rear Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M70t_Gen_6?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 1x HDMI 2.1 TMDS For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M70t_Gen_6?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 2x DisplayPort 1.4a (HBR3, DSC) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M70t_Gen_6?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 1x Ethernet (RJ-45) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M70t_Gen_6?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 1x line-out (3.5mm) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M70t_Gen_6?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Optional Rear Ports (configured) | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Physical Locks | Padlock Loop |
| Smart Cable Clip | None |
| Chassis E-Lock | None |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| MANAGEABILITY | |
| System Management | Non-vPro Intel vPro offers a superset of DASH’s defined capabilities. |
| SERVICE | |
| Base Warranty | 1-year, Onsite |
| Included Upgrade | 1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN) |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR 9.0 |
| Green Certifications | TCO Certified 10 |
| Green Certifications | ErP Lot 3 |
| Green Certifications | GREENGUARD |
| Green Certifications | RoHS compliant |
| Mil-Spec Test | MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog) |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | None |
| ACCESSORIES | |
| Bundled Accessories | None |
