| PERFORMANCE | |
|---|---|
| Processor | AMD Ryzen 5 8500G (6C / 12T, 3.5 / 5.0GHz, 6MB L2 / 16MB L3) |
| Graphics | Integrated AMD Radeon 740M Graphics |
| Chipset | AMD PRO665 Chipset |
| Memory | 1x 16GB UDIMM DDR5-5200 Installed memory is actually DDR5-5600 but may run as DDR5-5200 due to the memory support capability of processor. |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5200 The max memory is based on the test results with current Lenovo memory offerings. |
| Storage | 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0 |
| Max Storage Support | Up to three drives, 1x 3.5" HDD + 2x M.2 SSD
• 3.5" HDD up to 2TB
• M.2 SSD up to 2TB each The max capacity of each disk type is based on the test results with current Lenovo storage offerings. |
| Card Reader | 3-in-1 Card Reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC623-CG codec |
| Speakers | 1Wx1 |
| Power Supply | 260W 90% Hybrid PSU sources configured for supply assurance; assembled product has maximum wattage of 258W. |
| DESIGN | |
| Keyboard | USB Traditional Keyboard, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | One PCIe 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm M.2 slot for SSD is M.2 PCIe 4.0 x4 slot, supports up to 64Gbps on NVMe drives |
| Expansion Slots | One PCIe 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm M.2 slot for SSD is M.2 PCIe 4.0 x4 slot, supports up to 64Gbps on NVMe drives |
| Expansion Slots | Three M.2 slots (one for WLAN, two for SSD) M.2 slot for SSD is M.2 PCIe 4.0 x4 slot, supports up to 64Gbps on NVMe drives |
| Case Color | Black |
| Stand | None |
| Dust Filter | None |
| Pen | Pen Not Supported |
| Form Factor | SFF (8.2L) |
| Dimensions (WxDxH) | 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches) The system dimensions may vary depending on configurations. |
| Weight | Around 4.6 kg (10.1 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| WLAN + Bluetooth | None |
| WWAN | WWAN Not Supported |
| Ethernet | Integrated 100/1000M |
| Front Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging |
| Front Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) |
| Front Ports | 1x microphone (3.5mm) |
| Optional Front Ports (configured) | 1x card reader |

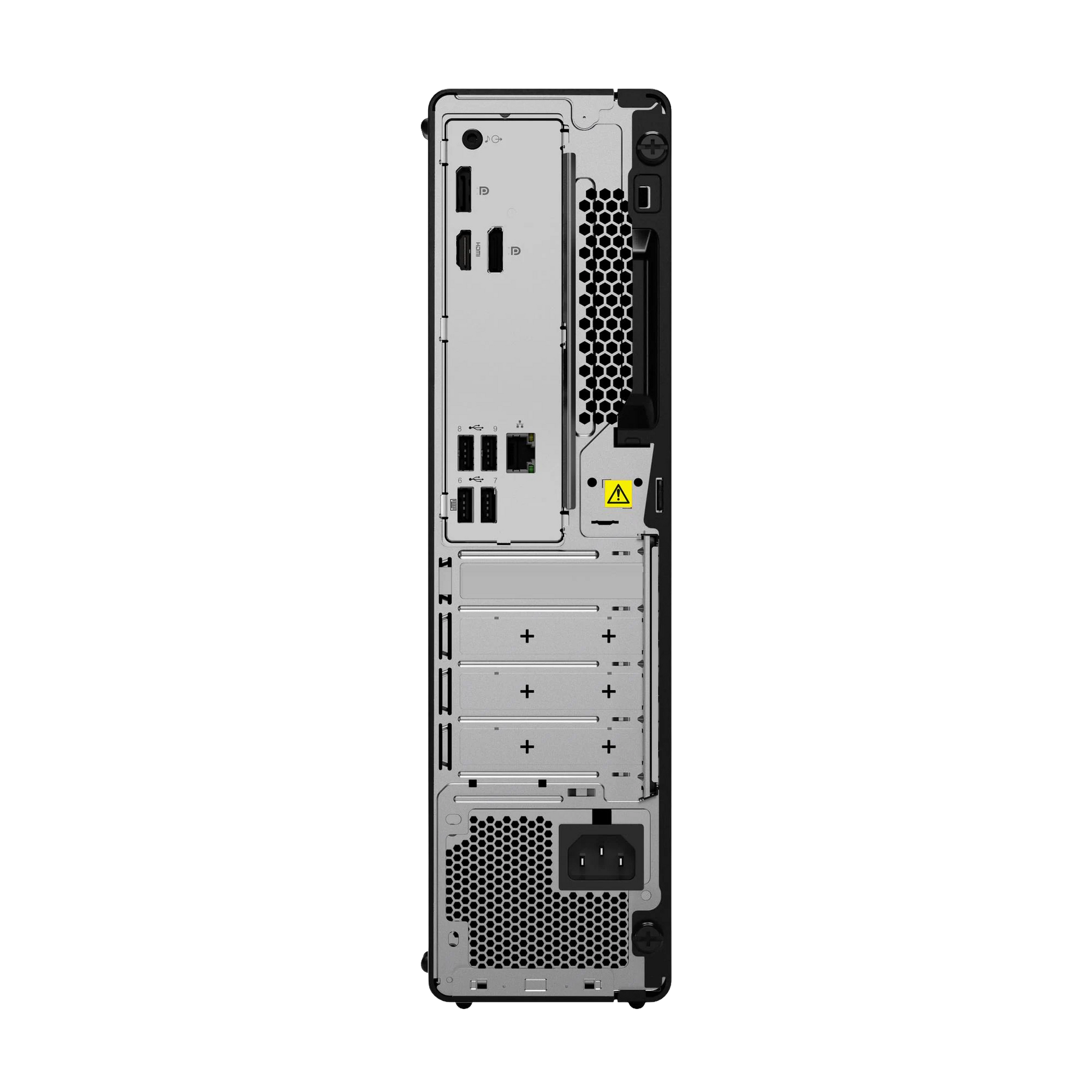

| Rear Ports | 4x USB-A (Hi-Speed USB / USB 2.0) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M75s_Gen_5?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 1x HDMI 2.1 TMDS For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M75s_Gen_5?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 2x DisplayPort 1.4a (HBR2, DSC) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M75s_Gen_5?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 1x Ethernet (RJ-45) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M75s_Gen_5?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Rear Ports | 1x line-out (3.5mm) For video ports on discrete graphics, please see <a href="https://psref.lenovo.com/Product/ThinkCentre/ThinkCentre_M75s_Gen_5?tab=specfeature=Graphics" target="_blank"><u>graphics section</u></a> |
| Optional Rear Ports (configured) | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Physical Locks | Padlock Loop |
| Smart Cable Clip | None |
| Chassis E-Lock | None |
| Chassis Intrusion Switch | None |
| Other Security | Pluton security processor |
| MANAGEABILITY | |
| System Management | Non-DASH |
| SERVICE | |
| Base Warranty | 3-year, Onsite |
| Included Upgrade | None |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR 8.0 |
| Green Certifications | EPEAT Gold Registered |
| Green Certifications | ErP Lot 3 |
| Green Certifications | GREENGUARD |
| Green Certifications | RoHS compliant |
| Green Certifications | TCO Certified 9.0 |
| Mil-Spec Test | MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog) |
| SOFTWARE | |
| Operating System | Windows 11 Pro, German |
| Bundled Software | None |
| ACCESSORIES | |
| Bundled Accessories | None |
