| PERFORMANCE | |
|---|---|
| Processor | Intel Core i5-1145GRE (4C / 8T, 1.1GHz, 8MB Intel Smart Cache) The Intel? Turbo Boost is disabled. The maximum Thermal Design Power (TDP) of microprocessor might be 12W, 15W, or 28W, which depends on different microprocessor series. The max frequency might not be obtainable at high work levels, so the microprocessor will adjust the frequency to obtain the maximum TDP allowed. |
| Graphics | Integrated Intel Iris Xe Graphics |
| Chipset | Intel SoC Platform |
| Memory | 1x 16GB Soldered DDR4-3200 |
| Max Memory | Up to 16GB soldered memory, not upgradable |
| Memory Slots | Memory soldered to systemboard, no slots, dual-channel |
| Storage | 512GB SSD M.2 2230 PCIe 3.0 NVMe |
| Max Storage Support | Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 2TB each
• M.2 2230 SSD up to 1TB each
• RAID 0/1 support M.2 2280 SSD is for SKU operational temperature range: 0-50°C
M.2 2230 SSD is for SKU operational temperature range: -20~60°C |
| RAID Preset | None |
| Power Supply | 65W 89% Adapter |
| DESIGN | |
| Keyboard | USB Traditional Keyboard, Black, German |
| Mouse | USB Calliope Mouse, Black |
| Case Color | Black |
| Mounting | None |
| Dimensions (WxDxH) | 179 x 88 x 51.5 mm (7.05 x 3.46 x 2.03 inches) The system dimensions may vary depending on configurations. |
| Weight | Around 1.02 kg (2.25 lbs) The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
| CONNECTIVITY | |
| Ethernet | Intel I225-IT + RTL8111KI, 2x RJ-45 For SKU operational temperature range: -20~60°C |

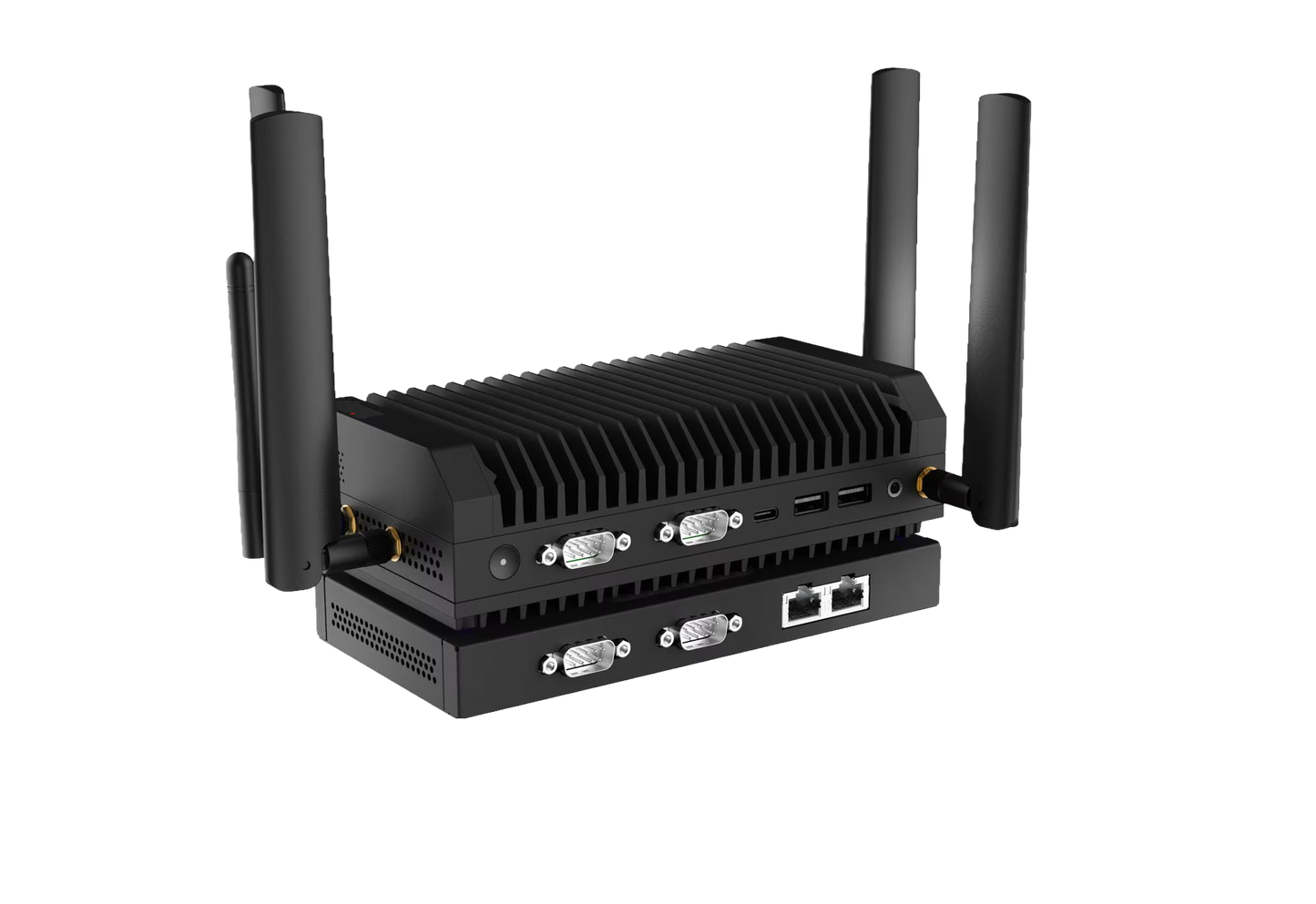

| WLAN + Bluetooth | Intel 9260, Wi-Fi 5, 802.11ac 2x2 + BT5.1, vPro |
| WWAN | WWAN Not Supported |

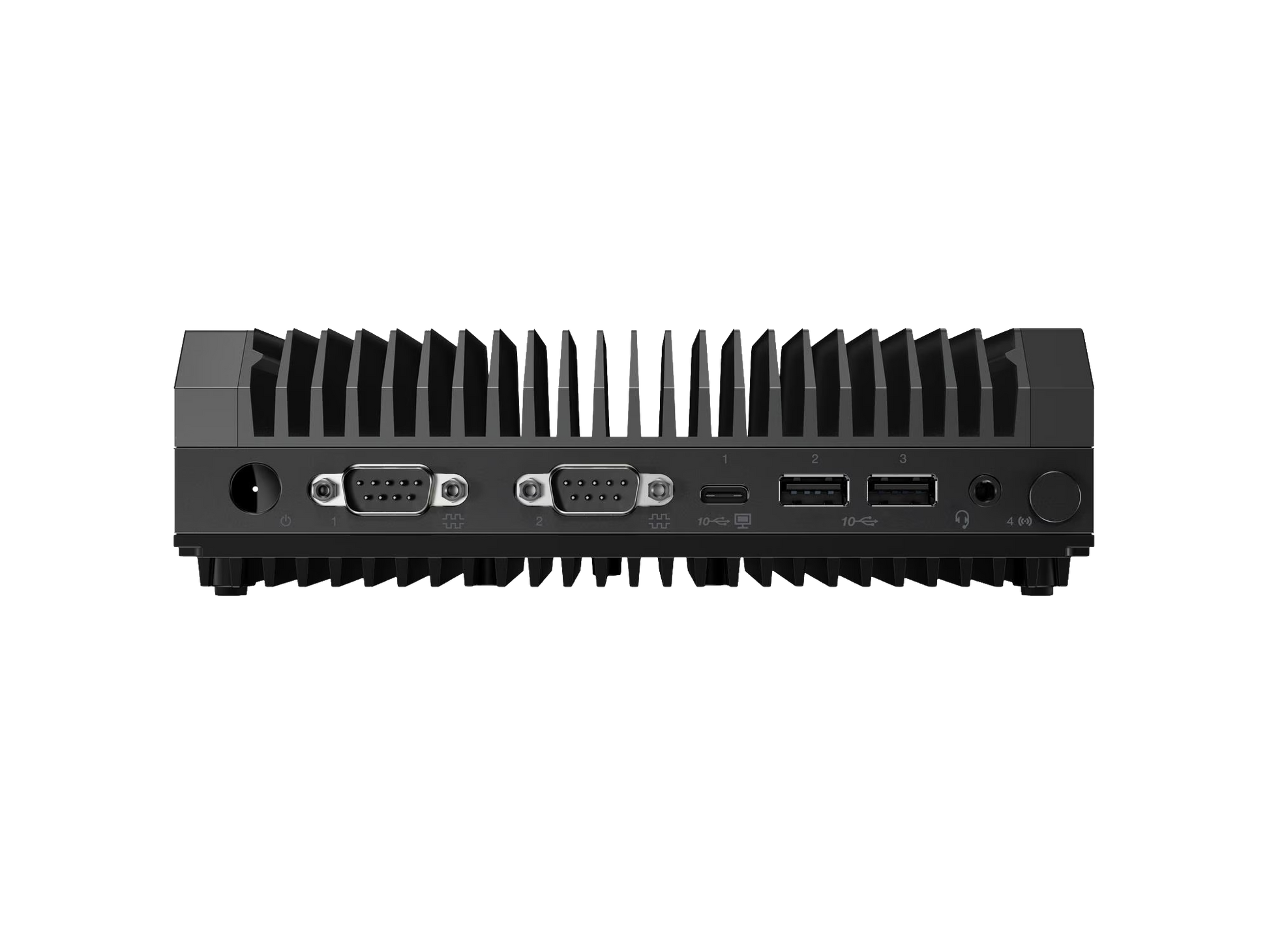

| Front Ports | 1x USB-C 3.2 Gen 2 (support data transfer and display) |
| Front Ports | 2x USB 3.2 Gen 2 |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) |
| Front Ports | 2x serial (RS232 / RS422 / RS485, BIOS selectable) |

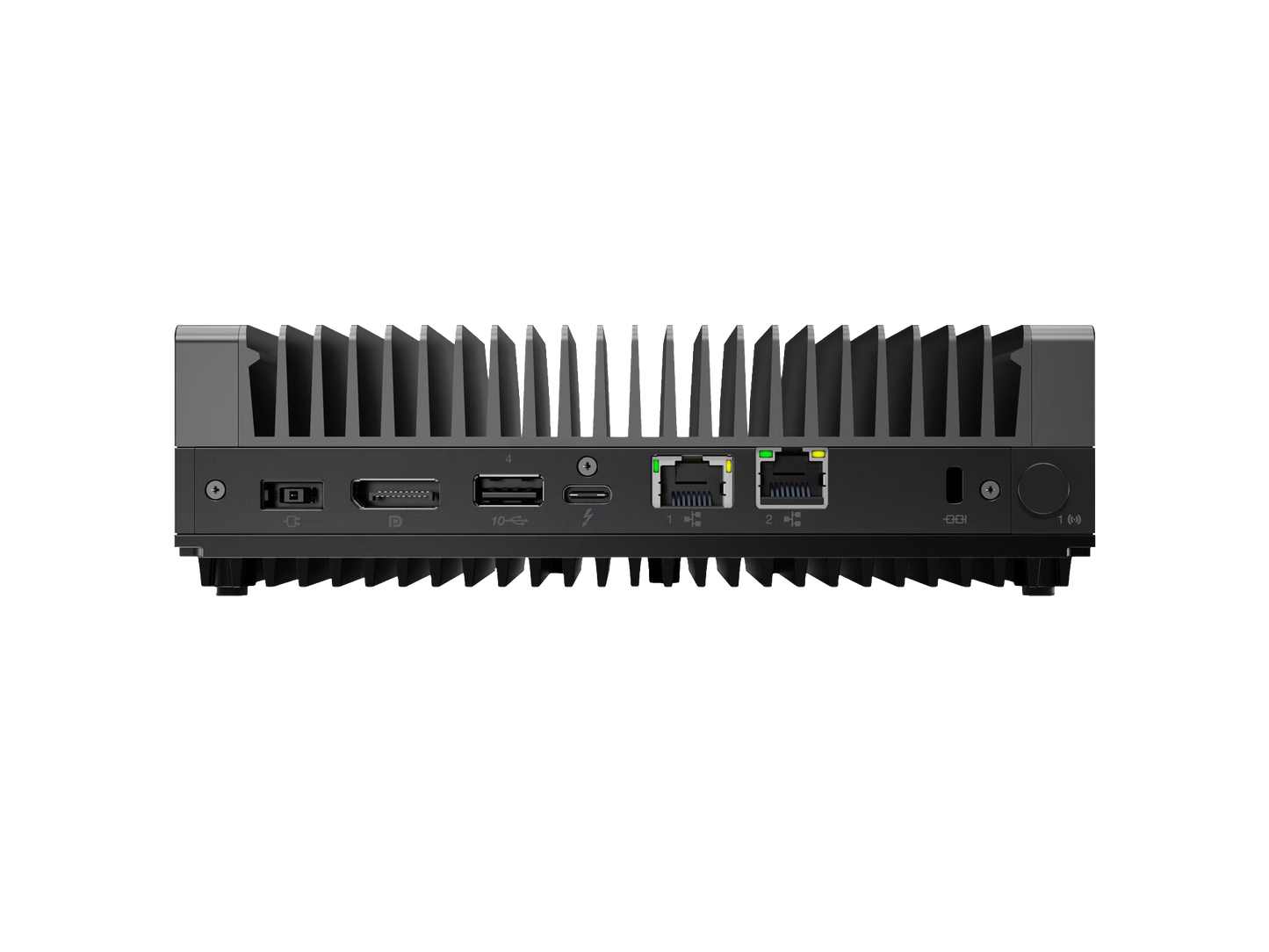

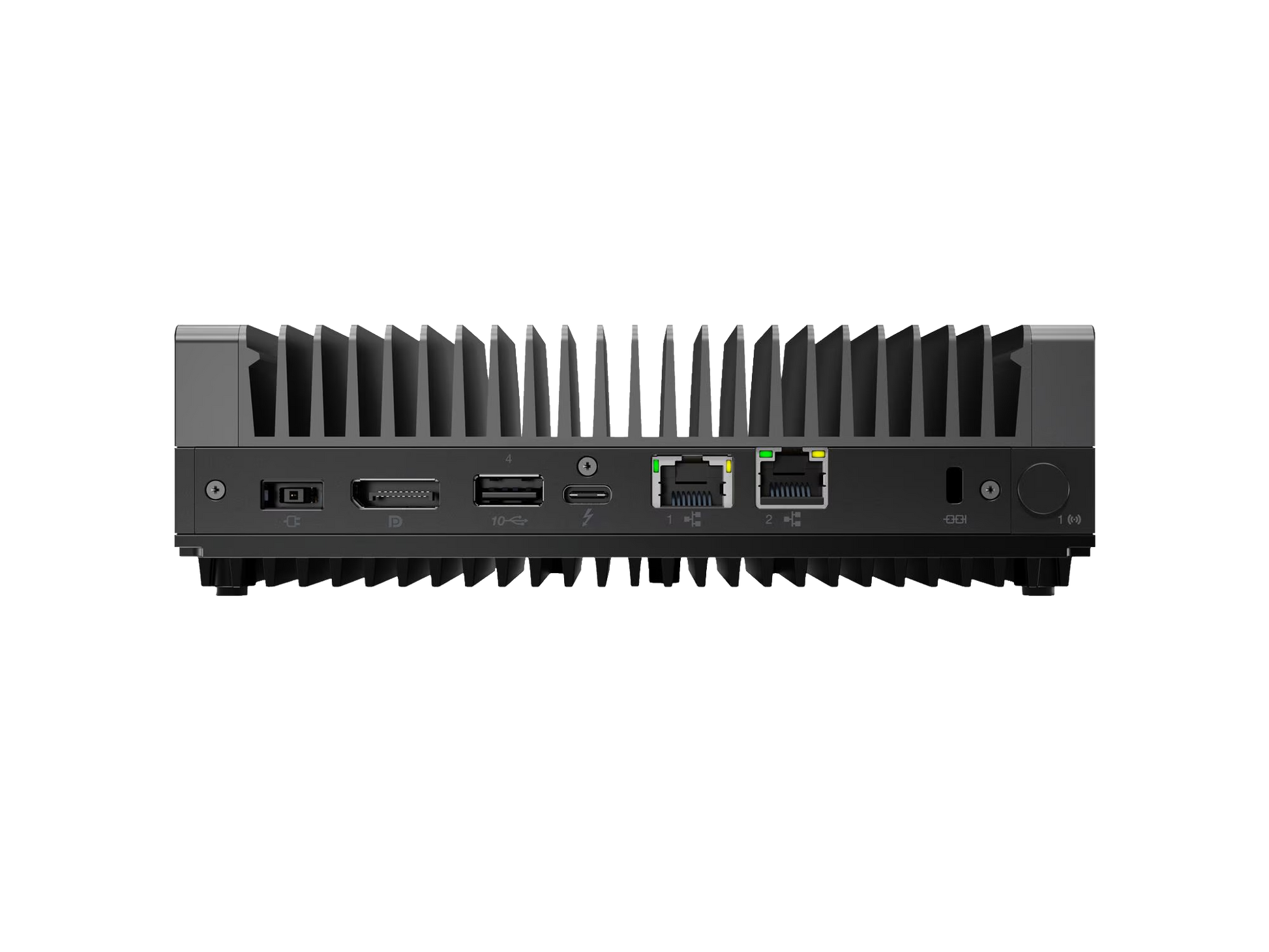

| Rear Ports | 1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 5V@3A and display) If IO box gets power supply from ThinkEdge SE30, need to connect USB-C (on IO box) with Thunderbolt 4 port (on SE30). |
| Rear Ports | 1x USB 3.2 Gen 2 If IO box gets power supply from ThinkEdge SE30, need to connect USB-C (on IO box) with Thunderbolt 4 port (on SE30). |
| Rear Ports | 1x DisplayPort 1.4a (for i5 models) If IO box gets power supply from ThinkEdge SE30, need to connect USB-C (on IO box) with Thunderbolt 4 port (on SE30). |
| Rear Ports | 1x power connector If IO box gets power supply from ThinkEdge SE30, need to connect USB-C (on IO box) with Thunderbolt 4 port (on SE30). |
| Rear Ports | 2x Ethernet (RJ-45) If IO box gets power supply from ThinkEdge SE30, need to connect USB-C (on IO box) with Thunderbolt 4 port (on SE30). |

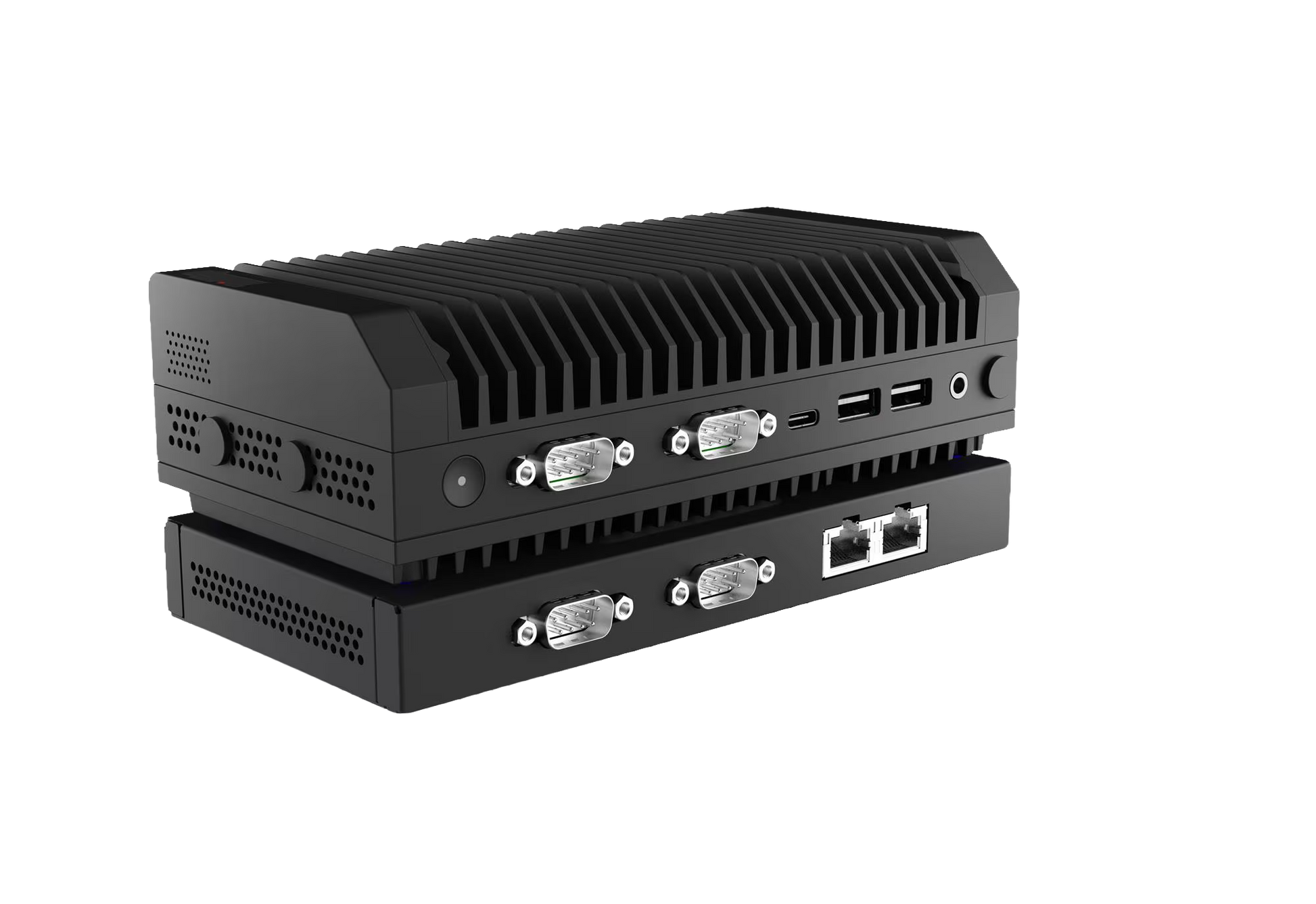

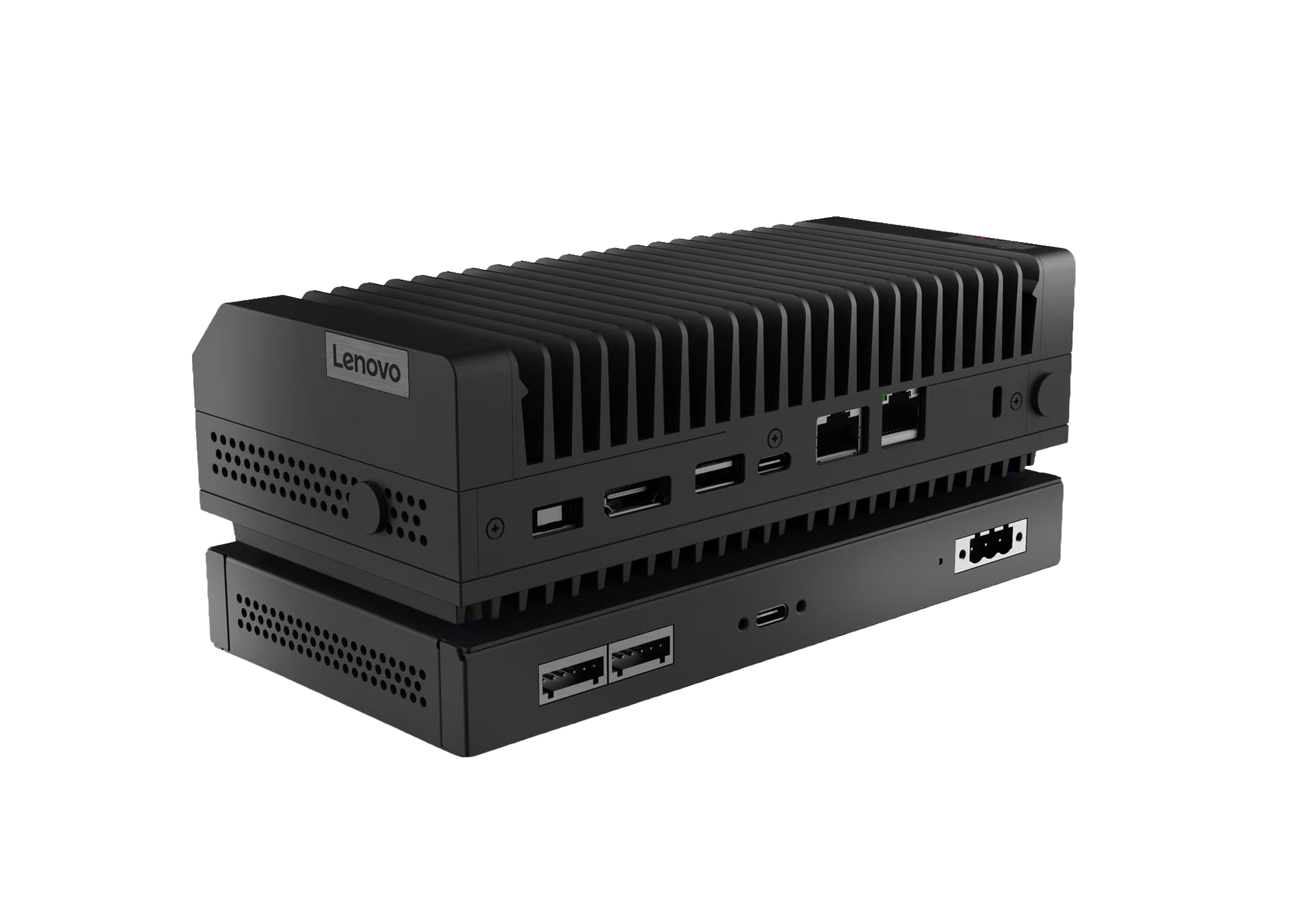

| IO Box | None For more details, please go to https://pcsupport.lenovo.com. |
| Monitor Cable | None |
| SECURITY PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| MANAGEABILITY | |
| System Management | Intel vPro |
| SERVICE | |
| Base Warranty | 3-year, Onsite |
| Included Upgrade | None |
| ENVIRONMENTAL | |
| Operating Temperature | Wide Temperature -20℃ to 60℃ (-4℉ to 140℉) |
| CERTIFICATIONS | |
| Green Certifications | ErP Lot 6/26 |
| Green Certifications | Low Halogen |
| Green Certifications | PCF |
| Green Certifications | REACH |
| Green Certifications | RoHS compliant |
| Green Certifications | TED (ECO-declaration) |
| Green Certifications | WEEE |
| SOFTWARE | |
| Operating System | Windows 11 IoT Enterprise LTSC 2024, German |
| ACCESSORIES | |
| Bundled Accessories | None |
